产品描述:

7.5kw 8bar tank mounted all in one screw air compressor with air tank and air dryer permanent magnet vsd type

·Main motor: Permanent magnet motor IP23

·Control type: microprocessor

·Driven type: One shaft direct driven

·Cooling type: air cooling

·Residual oil content: less than 3 ppm (with one pcs line filter)

·Air dryer: refrigerant R410

·Delivery: 25 days

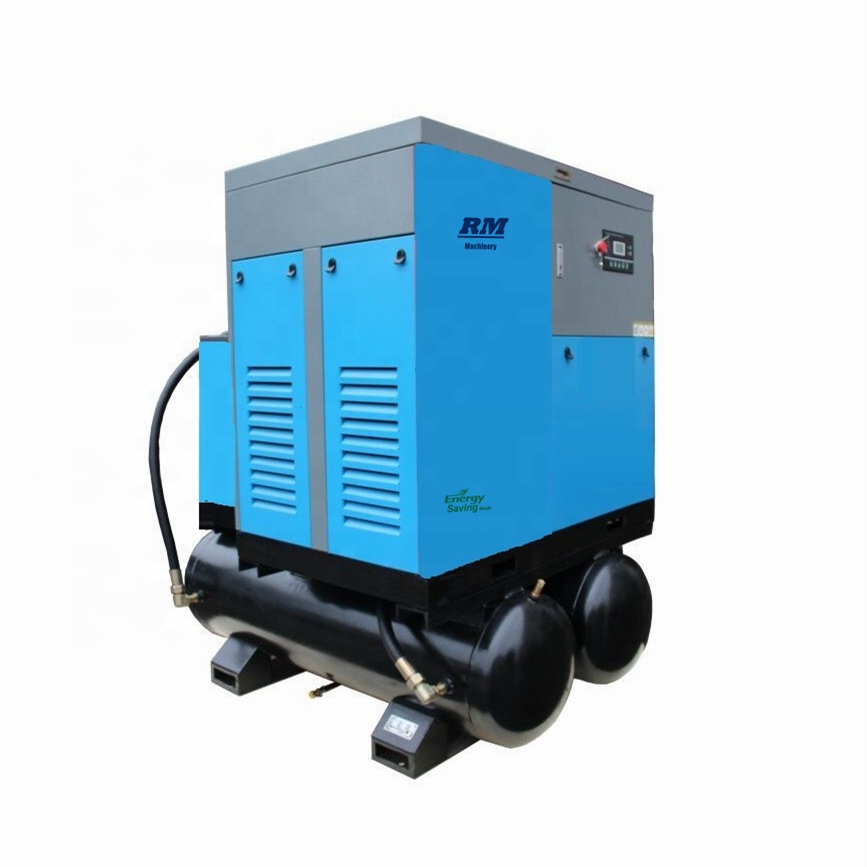

compact screw compressor.jpg

Technical parameters:

Model.	Motor		noise	Oulet	pressure	flow rate	Weight	net weight	Dimensions	Cooling	Driven
	Kw	Hp	Db(A)	Connection	bar	m3/min	Kg	Kg	LxWxH (mm)	Type	Type
compressor/tank(180L)	5,5	7.5	73	G3/4	8-10bar	0.8m3/min@8bar 0.7m3/min@10bar	440	340	11206351370	Air cooling	Direct
compressor/tank/dryer(220L)							520	420	19006351370
compressor/tank(180L)	7.5	10	73	G3/4	8-10bar	1.1m3/min@8bar 1.0m3/min@10bar	460	360	11206351370	Air cooling	Direct
compressor/tank/dryer(220L)							540	440	19006351370
compressor/tank(272L)	11	15	75	G3/4	8-10bar	1.6m3/min@8bar 1.3m3/min@10bar	590	490	15007501735	Air cooling	Direct
compressor/tank/dryer(340L)							690	580	19007501735
compressor/tank(272L)	15	20	75	G3/4	8-10bar	2.3m3/min@8bar 2.0m3/min@10bar	610	510	15007501735	Air cooling	Direct
compressor/tank/dryer(340L)							700	600	19007501735
compressor/tank/dryer(500L)	18.5	25	75	G1/2	8-10bar	2.9m3/min@8bar 2.6m3/min@10bar	920	1000	205011202050	Air cooling	Direct
compressor/tank/dryer(340L)	22	30	75	G1/2	8-10bar	3.5m3/min@8bar	950	1050	205011202050	Air cooling	Direct

Controller display main functions:

1 Start Button:

When compressor is at stop status, press this button to start the compressor.
When compressor is set as master (No.1) in block mode, press this button to start the compressor and
activate block mode function at the same time.

2 Stop Button:

When the compressor is at running status, press this button to stop the compressor.
When compressor is set as master (No.1) in block mode, press this button to stop compressor and block
mode function as well.

3 Set Button; Load / unloading Button:

When the compressor is at running status, press this button to load, unload.
When the compressor is at setting mode, press this button after modification to confirm and save the
modified data.

4 Return button / Reset button:

When modifying data, press this button to exist data setting mode.
When viewing the menu, press this button to return to previous-menu.
When the controller is at failure stop status, long press this button to reset.

5 Move left button:

When modifying data in textbox, press this button to move the cursor to the left data.
When cursor is in the page icon, press this button to move to the previous icon.

6 Move up button/Increasing button:

When modifying data, press this button to increase the data at current position.
When cursor is in the page icon, press this button to move to the next icon.

7 Move down button /Decreasing button:

When modifying data, press this button to decrease the data at current position.
When cursor is in the page icon, press this button to move to the next icon.

8 Move right button:

When modifying data, press this button to move the cursor to the right data.
When cursor is in the page icon, press this button to move to the next icon.

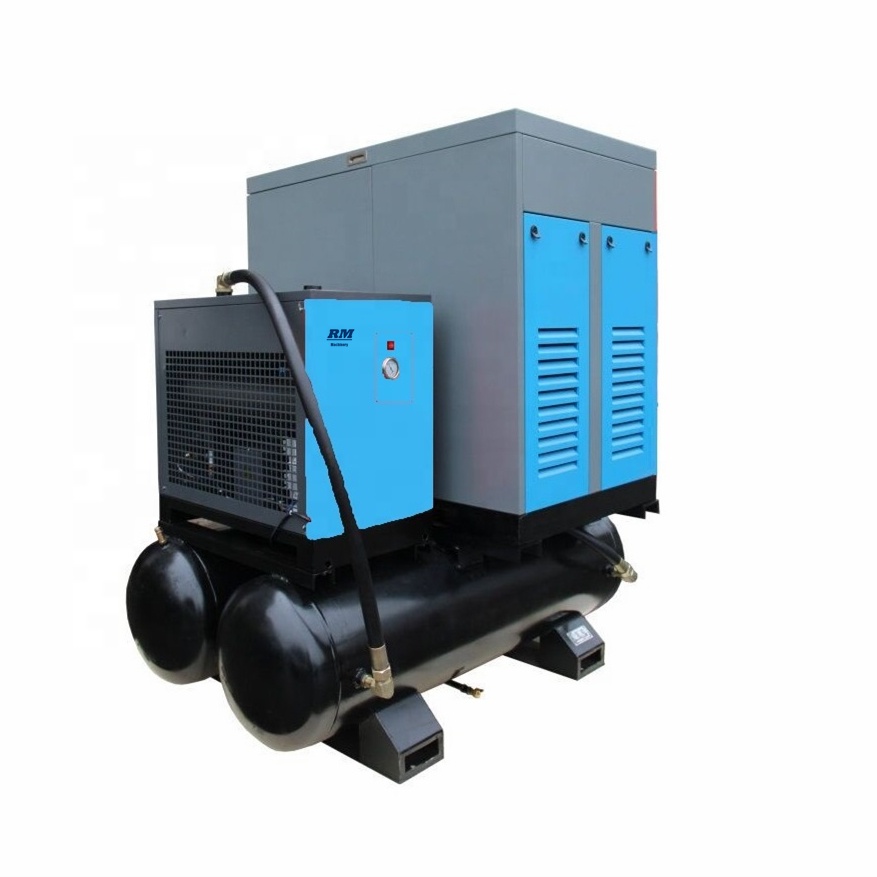

More photos of our compact screw air compressor:

Company Information

Shanghai Royal Machinery Co.,Ltd is a high-tech enterprise which specialized in sales and service of compressed air system equipment, and after-treatment equipment, booster compressor, diesel generator and drying equipment, etc.

We have an experienced team. It not only provide high-quality and high-efficiency compressors for users but also provide the best solution for air system equipment during before-sale, selling and after-sale.

Welcome to contact us for inquires and quotation.

Packaging & Shipping

All of our screw air compressors are packed by export standard plywood case:
