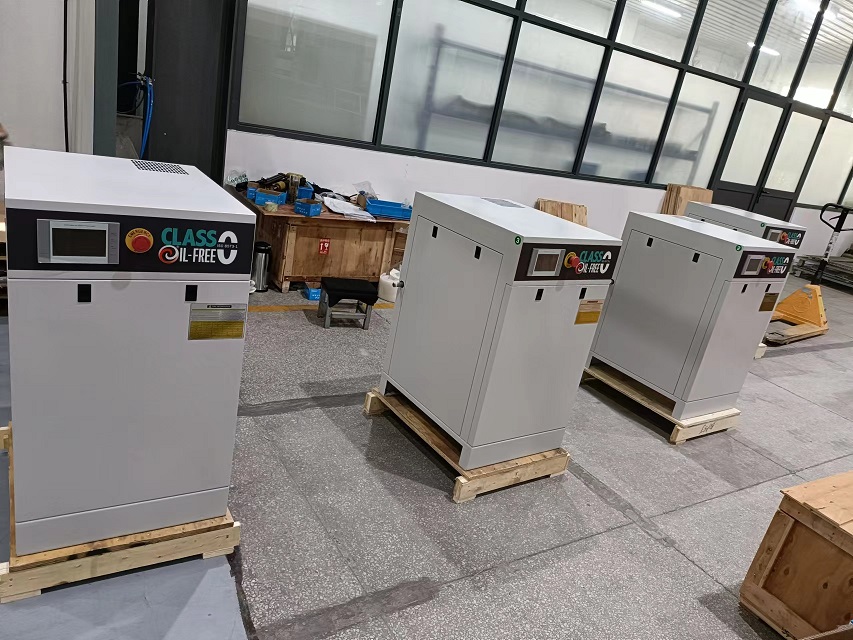

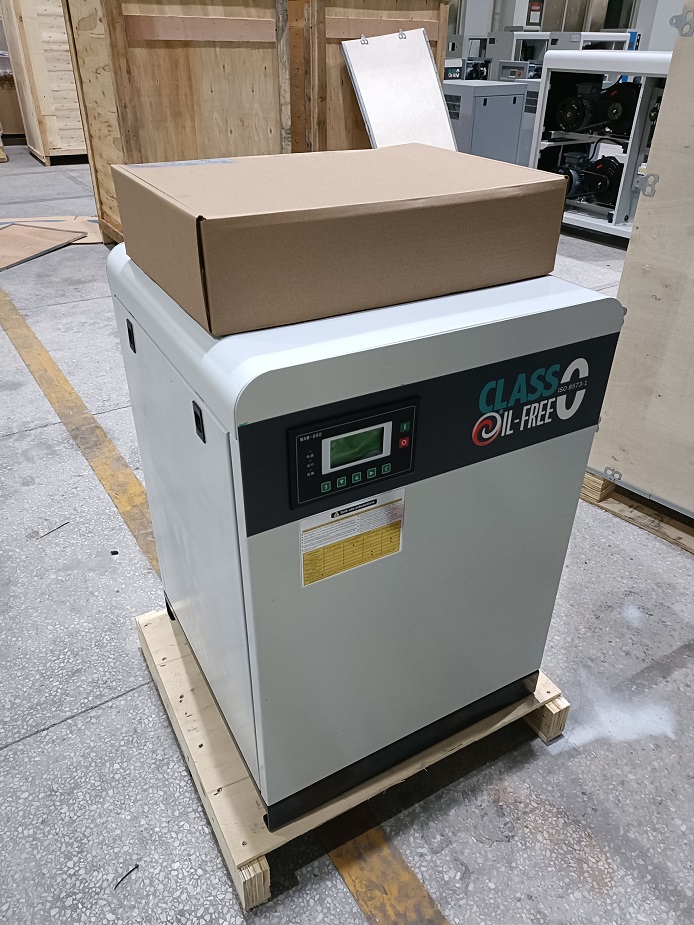

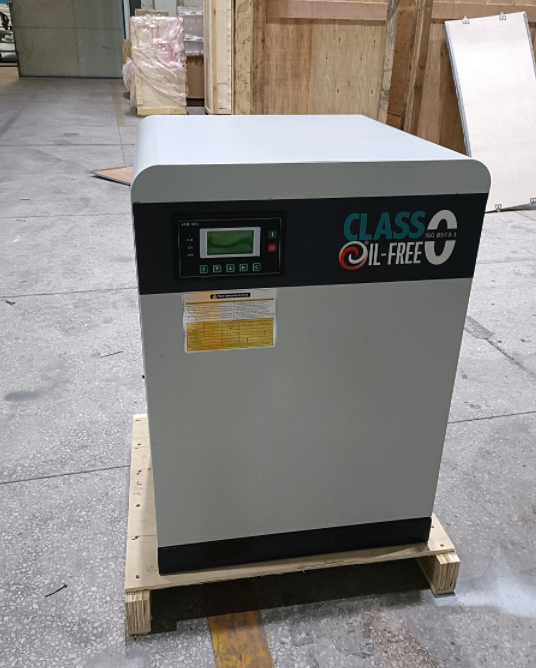

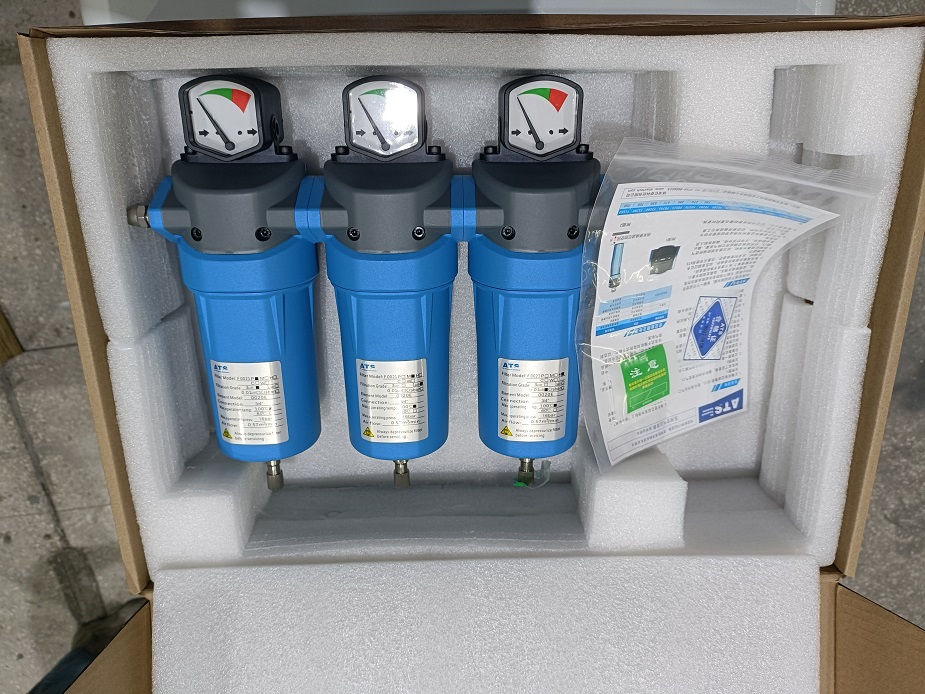

Our 3.7kw/5.0hp oil free scroll air compressor with ATS line filter set, work for Hyperbaric oxygen chamber

Hyperbaric oxygen chamber air compressor (referred to as air compressor) is the key equipment to provide compressed air to the hyperbaric oxygen chamber. Its main function is to compress the air in the atmosphere into high-pressure gas, which is separated and filtered from steam and water. Fill into the hyperbaric oxygen chamber to provide a hyperbaric environment in the oxygen chamber during hyperbaric oxygen therapy.

    1. Classification of air compressors

    Common oxygen chamber supporting air compressors are: oil-free piston air compressor, oil-free scroll air compressor, oil-free screw air compressor, among which oil-free scroll air compressor and oil-free screw air compressor are relatively stable in use .

    2. Configuration and requirements of oxygen chamber air compressor

    The selection of the oxygen chamber air compressor is mainly based on the gas consumption of the oxygen chamber. At the same time, the volume size and working pressure of the gas storage tank should also be considered. According to the requirements of the new national standard, the air compressor for the oxygen chamber should choose to use an oil-free air compressor, and the multi-person oxygen chamber should be equipped with not less than two air compressors. Each exhaust volume should fill up a set of gas storage tanks within two hours. The air inlet of the air compressor should be kept away from various pollution sources, and a cooler should be installed in front of the air storage tank to reduce the temperature of the compressed gas.

    3. Air compressor management

    Air compressor is the key equipment to provide compressed air during hyperbaric oxygen therapy. The normal operation of the air compressor directly affects the hyperbaric oxygen therapy of the patient. Strengthening the management of air compressors, using air compressors correctly and reasonably and doing a good job in air compressor maintenance can reduce the failure rate of compressors and prolong the service life of compressors. Provide a guarantee for the normal operation of hyperbaric oxygen therapy.

    In the management of air compressors, daily inspection and maintenance play a very important practical role. Through daily inspection, the failure of the machine can be found in time. be resolved in a timely manner. Prevent failure from expanding. Before starting the machine, check carefully and make various preparations: check whether the voltage of the power supply fluctuates greatly. Too high or too low voltage will cause the motor running current of Quanwei air compressor to be too large. The motor heats up badly. Affect its service life; also carefully check the condition of the compressor. For example, whether the compressor outlet valve is open, and whether the inlet and outlet of the cooling water circuit of the cooling system are unobstructed. Whether the lubricating oil level is kept in a normal position, whether the lubricating oil path is smooth, and whether the leather wheel runs flexibly. During the operation of the air compressor, it is necessary to closely observe the running state of the machine, make detailed records, and provide information for the maintenance of the compressor. Problems found during maintenance should be solved immediately. Only by strengthening the management of air compressors can we ensure the safe and normal operation of the machines and provide guarantees for the safety of hyperbaric oxygen therapy.
