Shanghai Royal Machinery Co.,Ltd

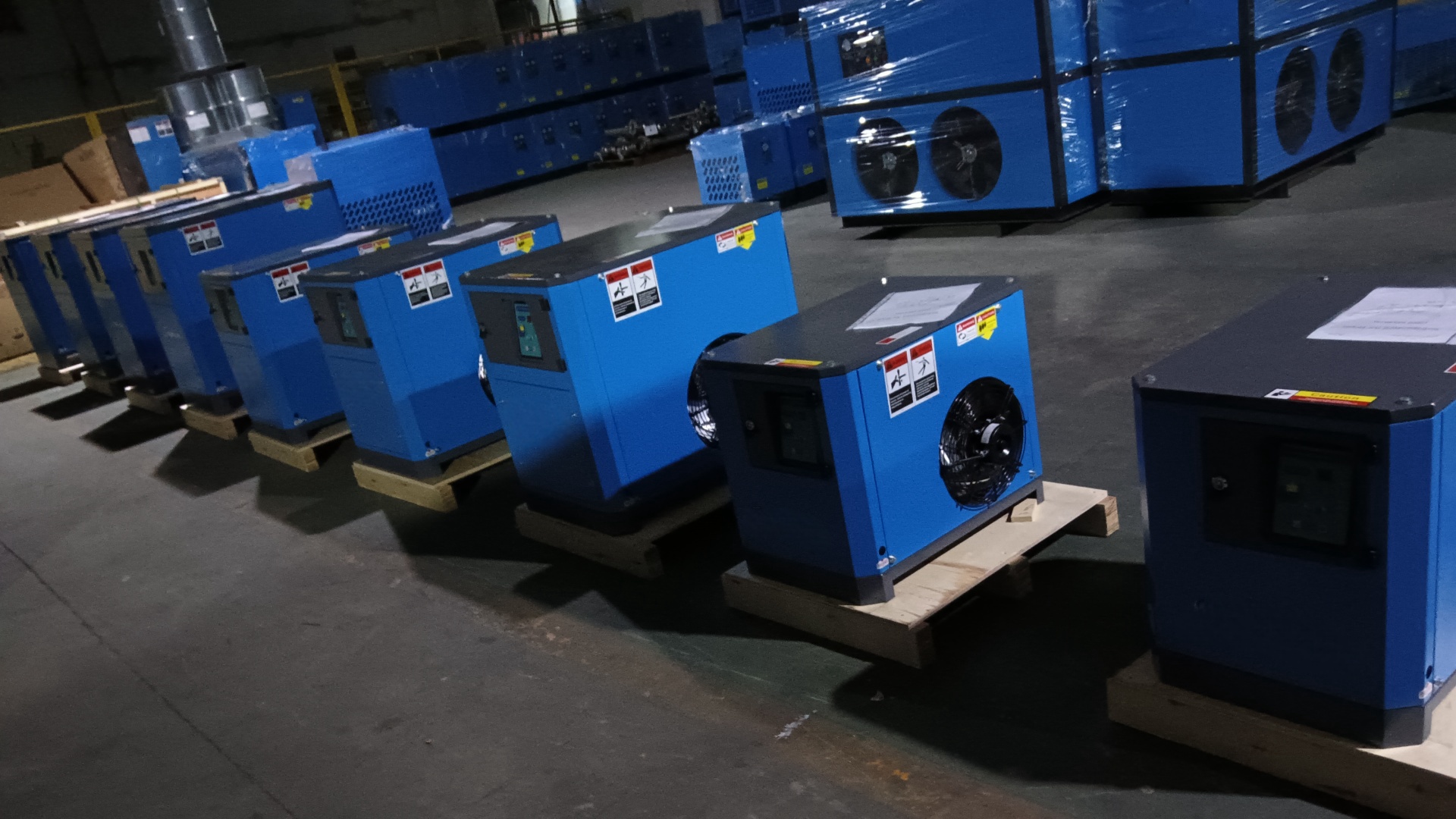

20units refrigerant air dryers, with plywood case package, shipped to our agent customer.

Air-cooling Refrigerated Air Dryer

Refrigerated air dryer is drying through cooling.It cools the compressed air from upstream to certain dew point temperature,condensates most of liquid water with dust and oil,and then drains out of the machine through gas/liquid separator so as to get the dried finished air.

Work Condition and Technical Data:

Inlet temperature : ≤65℃

Cooling method: （air-cooled）

Designed dew point: 2~10℃

Refrigerant: R134A  R410A

Inlet pressure: 0.6~1.6MPa

Pressure drop: ≤0.02MPa
