China Best Quality Air Compressor With CE Certificate 20bar 2.0Mpa high pressure General Industrial

20bar 2.0Mpa high pressure screw air compressors for laser cutting machine

we offer 11kw 20bar, 15kw 20bar, 22kw 20bar, 37kw 20bar, 45kw 20bar, 55kw 20bar screw air compressors for laser cutting machine

20bar pressure fixed speed screw air compressors, and permanent magnet screw air compressors

welcome to contact with us for more details, thanks.

.............................................................................................................................................................................................

Main general parameters:

20BAR SCREW AIR COMPRESSORS
Power	Power	Pressure	Compressors	Air flow	Noise	Discharge	Dimension mm			Weight Kg	Remarks
		Pressure	Compressors	Air flow	Noise	Discharge	Length	Width	Height	Weight Kg	Remarks
		bar	Model No.	m3/min	dB	Connection					Driven
15HP	11KW	20bar	RMC-11-20	0.91	63	G3/4"	1165	690	1025	248	Belt
20HP	15KW	20bar	RMC-15-20	1.05	65	G3/4"	1165	690	1025	275	Belt
20HP	15KW	20bar	RMC-15-20VSD	0.42-1.05	65	G3/4"	1165	690	1025	275	Belt
30HP	22KW	20bar	RMC-22-20	1.81	68	G1"	1330	830	1265	400	Direct
30HP	22KW	20bar	RMC-22-20 VSD	0,54-1,81	68	G1"	1330	830	1265	400	Direct
50HP	37KW	20bar	RMC-37-20	3.3	69	G1 1/2"	1500	940	1415	650	Direct
50HP	37KW	20bar	RMC-37-20 VSD	1.32-3.3	69	G1 1/2"	1500	940	1415	650	Direct
75HP	55KW	20bar	RMC-55-20	4.95	70	G2"	1600	1060	1470	1038	Direct
75HP	55KW	20bar	RMC-55-20 VSD	1.48-4.95	70	G2"	1600	1060	1470	1038	Direct

.....................................................................................

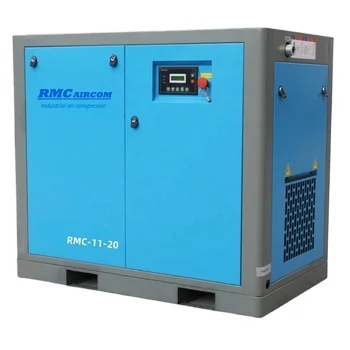

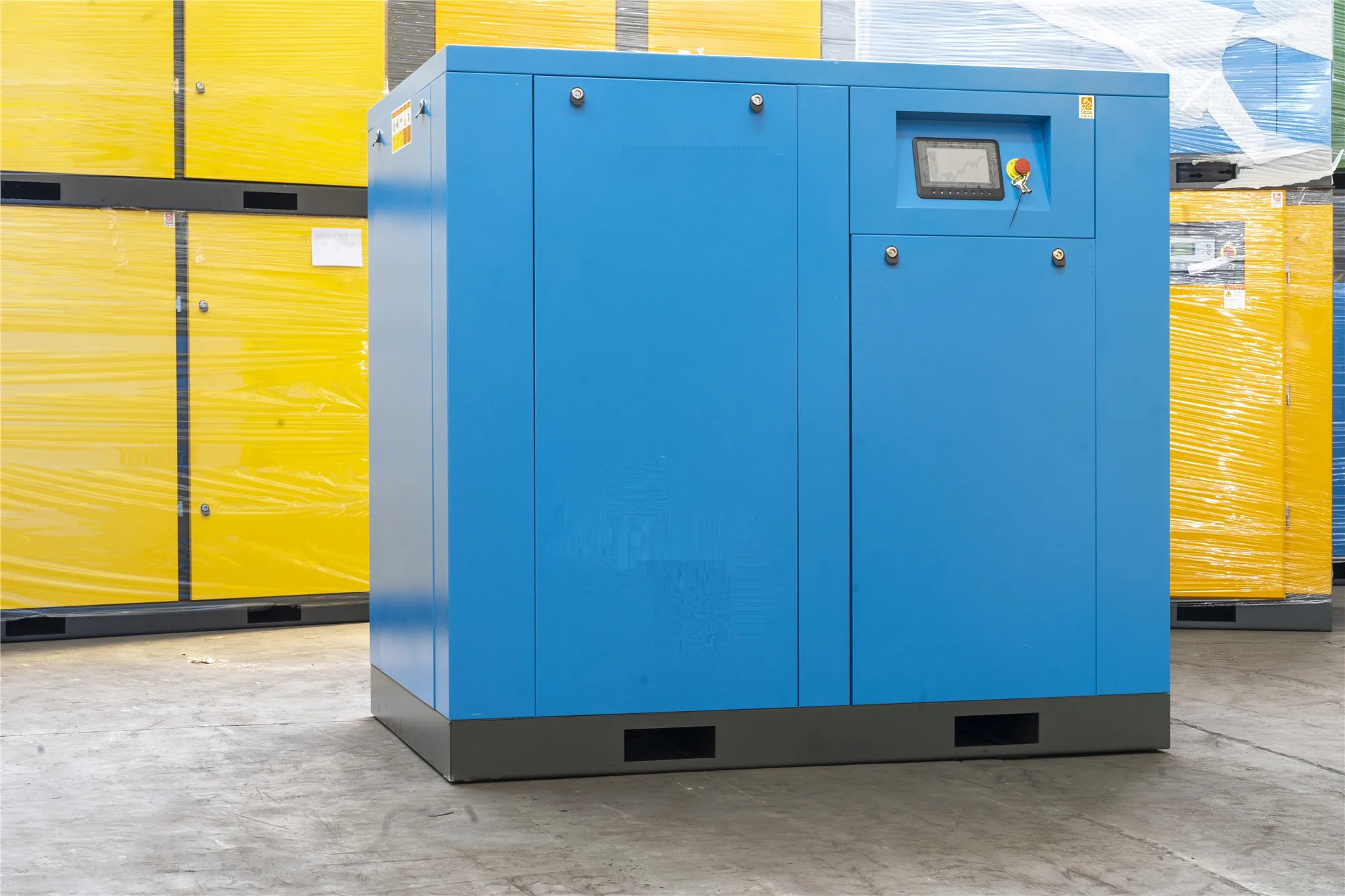

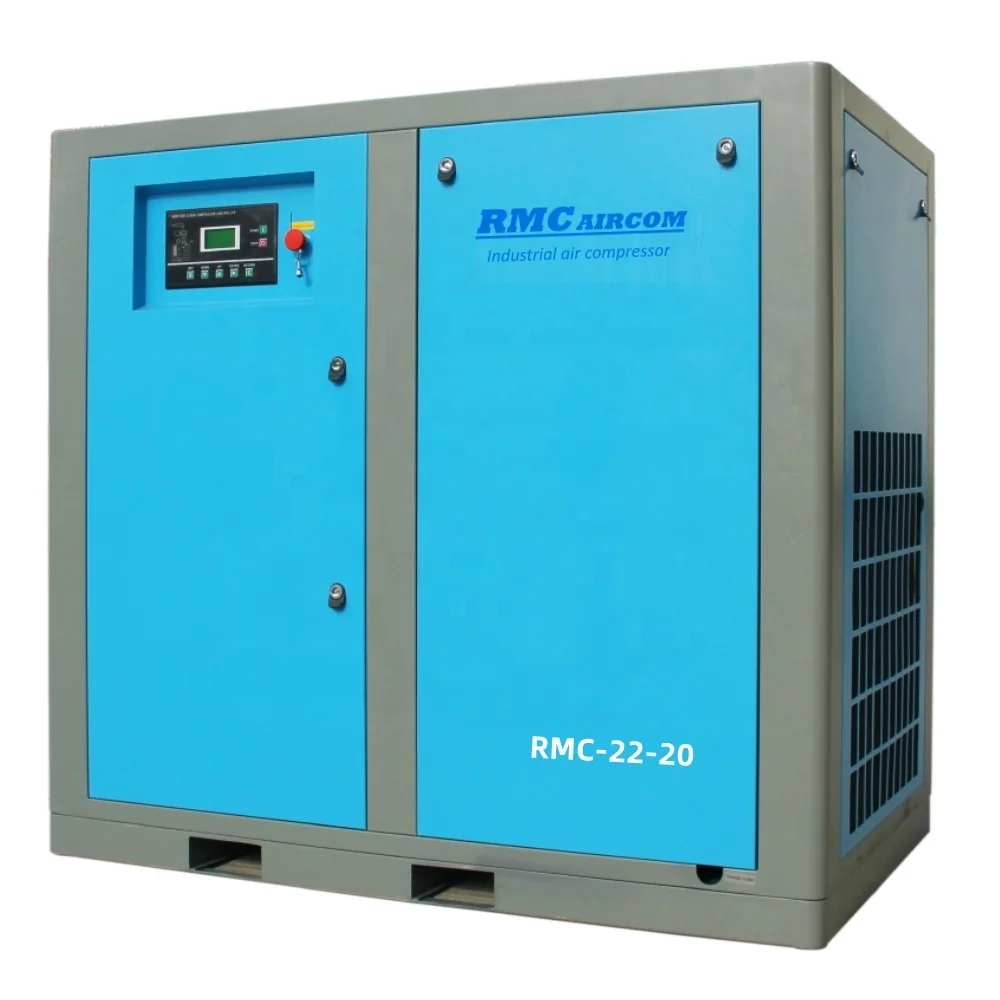

Photos for reference:

.....................................................................................................

Main configuration:

Airend: HANBELL
Motor: fixed speed IP55, permanent magent motor IP54
Air cooling type
Fixed speed type and Variable speed type
Stationary, without tank, without air dryer

...............................................................................................

Packaging & Shipping

20150817_092229 _20210107174130 209131325 package 43217

Screw air compressors package Oil-free Scroll air compressors 200bar-300bar Air compressors

_{For our screw air compressors,}_{we packed them by plywood case}_{for LCL shipping, for full container}_{shipping, we will pack the air}_{compressors depend on}_{customer request, some}_{times by pallet too.}

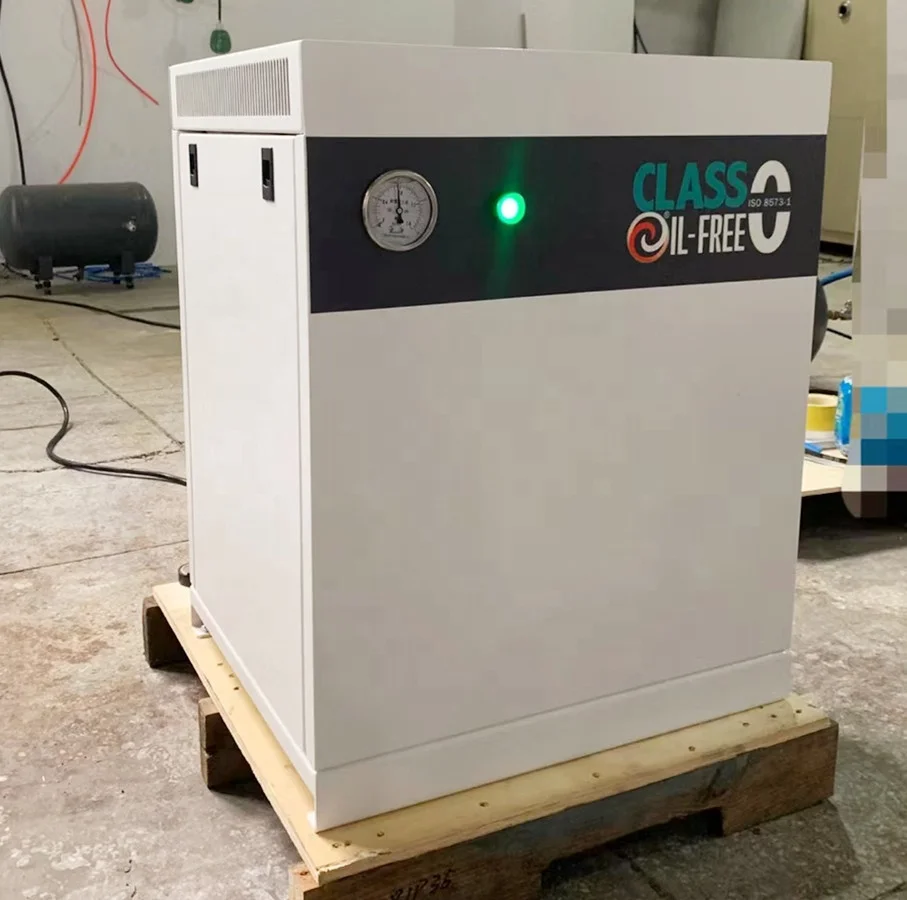

_{We packed all of our oil-free scroll air compressors by plywood case, because they take not much big space, and for good safe transport, if oil-free scroll airend, we will pack them by pp foam first, after that by plywood case.}

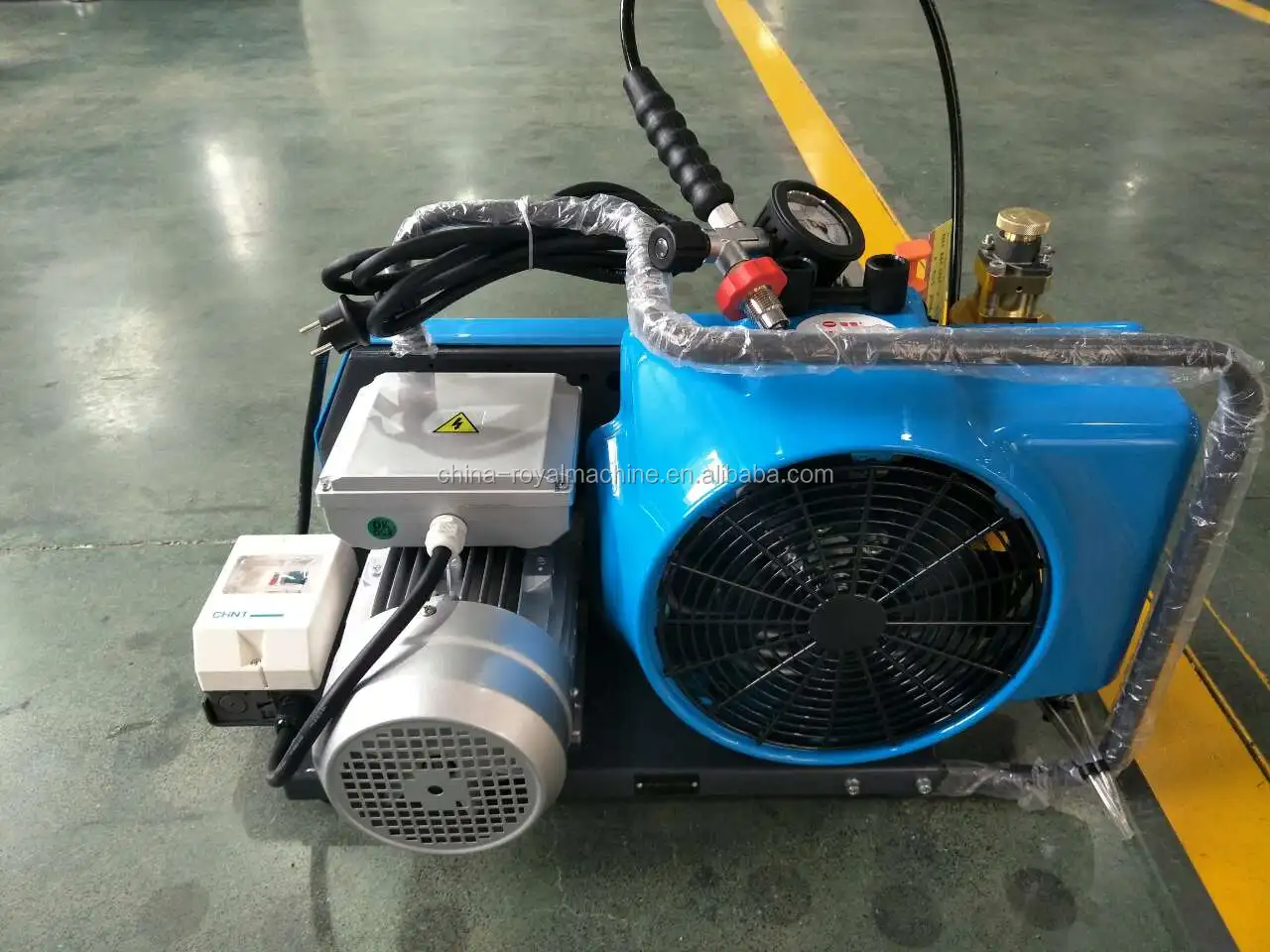

_{For our small breathe air compressors,we all packed them by plywood case, normally they are 2.2kw 225bar or 330bar pressure, take very small space, for scuba diving and firefighting breathe air.}

Company Information

Shanghai Royal Machinery Co.,Ltd is a professional company of industrial air compressors, air treatment and air compressor spare parts, with engineers and sales people who have over 8 years experience, Royal Machinery has two business divisions, one is our own brand products, the other brands are Ingersoll Rand and Compair products. We have been marketing industrial compressed air equipment to global market since 2017 and the main assembling plants cover more than 50,000 square meters and 320 employees. The range of our compressors supplying start from the smallest compressors used by individuals to very large compressors used in heavy industrial applications. We started the business as a close partner to our customers, our sales team can provide you competitive price with high quality products, with our customers supporting, our team will get all the orders fulfilled on time and provide you excellent after-sales service. Our product range represents the most comprehensive portfolio of compressed air equipment offered for thousands of applications in the Oil, Textile, Food, Marine, Mining and many other industries. Our products consist of medium and high pressure reciprocating compressors, oil-injected screw compressors, oil free screw compressors, vane compressors, centrifugal compressors, portable compressors, CNG compressors and CNG related equipment, also high pressure scuba air compressors. Our mission is to bring China assembled compressors of good quality and service, with attractive price for all the customers all over the world. You are welcomed to be developed with us together for a fruitful future.

Wecome to contact us for more details, we will offer compressor details, oil free screw air compressor use manual, oil free screw air compressor configuration list, oil free screw air compressor instruction drawings, spare parts list, installation drawings, technical support and maintenance training.

FAQ

_02

_{1. What's the warranty of your air compressors}

_{we give screw airend 2 years warranty, complete compressor unit 1 year; oil-free scroll air compressors we give 2 years warranty.}

_{2. Can you do OEM?}

_{Yes, we accept OEM and ODM orders for all our air compressors.}

_{3. What is the delivery time of the air compressor?}

_{It depend on customer order quantity, for regular voltage and pressure air compressors, our lead time 7 days, if big quantity we need 10-20days to prepare.}

_{4. What's the MOQ}

_{We accept all of our air compressors MOQ 1 unit.}

_{5. Can your air compressors work at high ambient temperature like 50℃ above please?}

_{Yes, our oil injection screw air compressors are support to work at high temperature environment, for oil-free water-lubrication screw air compressors, we will design it to be with air cooling or water cooling according to ambinet temperature.}

_{6. Can your air compressor work at low temperature like -20℃ below?}

_{Yes our air compressor is working very good in area like North of China and Russia.}

_{7. Do you have installation or maintenance video?}

_{Yes, we can offer our air compressor installation and maintenance video to customers.}
