big air flow, energy saving 2-stage compression screw air compressors:

Two-stage PM VSD screw air compressor
MODEL	Air flow (m3/min)				power (kw)	Noise (Db)	Discharge connection	Dimension ( mm)			Weight (KG)
MODEL	0.7Mpa	0.8Mpa	1.0Mpa	1.3Mpa	power (kw)	Noise (Db)	Discharge connection	Length	Width	Height	Weight (KG)
RMC-VPM2T22	4.50	4.20	3.40	2.60	22	68	G1	1440	830	1265	840
RMC-VPM2T30	6.05	5.80	4.18	4.00	30	68	G11/2	1500	940	1415	900
RMC-VPM2T37	7.40	7.13	6.00	4.60	37	68	G11/2	1500	940	1415	950
RMC-VPM2T45	10.50	9.90	6.80	5.71	45	72	G2	2000	1120	1590	1360
RMC-VPM2T55	13.60	12.30	10.15	7.00	55	76	DN50	2900	1470	1625	1780
RMC-VPM2T75	16.00	15.50	12.80	10.20	75	76	DN50	2900	1470	1625	2000
RMC-VPM2T90	20.70	19.50	16.15	13.20	90	76	DN65	3400	1757	1860	2700
RMC-VPM2T110	24.80	24.00	20.20	15.21	110	76	DN65	3400	1757	1860	3000
RMC-VPM2T132	29.00	28.00	23.20	18.70	132	78	DN80	3750	1900	1980	4650
RMC-VPM2T160	34.00	32.50	28.00	23.10	160	78	DN80	3750	1900	1980	4850
RMC-VPM2T185	39.00	38.00	32.00	27.70	185	78	DN100	3900	2100	1980	5900
RMC-VPM2T200	43.20	42.00	38.10	31.90	200	78	DN100	3900	2100	1980	6200
RMC-VPM2T220	48.51	46.20	41.20	31.60	220	82	DN100	4260	2182	2170	6200
RMC-VPM2T250	51.80	51.00	45.80	37.20	250	82	DN100	4260	2182	2170	6500

1, Two-stage compression stays closer to isothermal
compression with least power consumption.
2, Adopt two units of SKY Screw Rotors in two different sizes,
ensure rational pressure distribution and lower
the compression ratio for each compression process.
3, High-end Configuration and Systemic Optimization

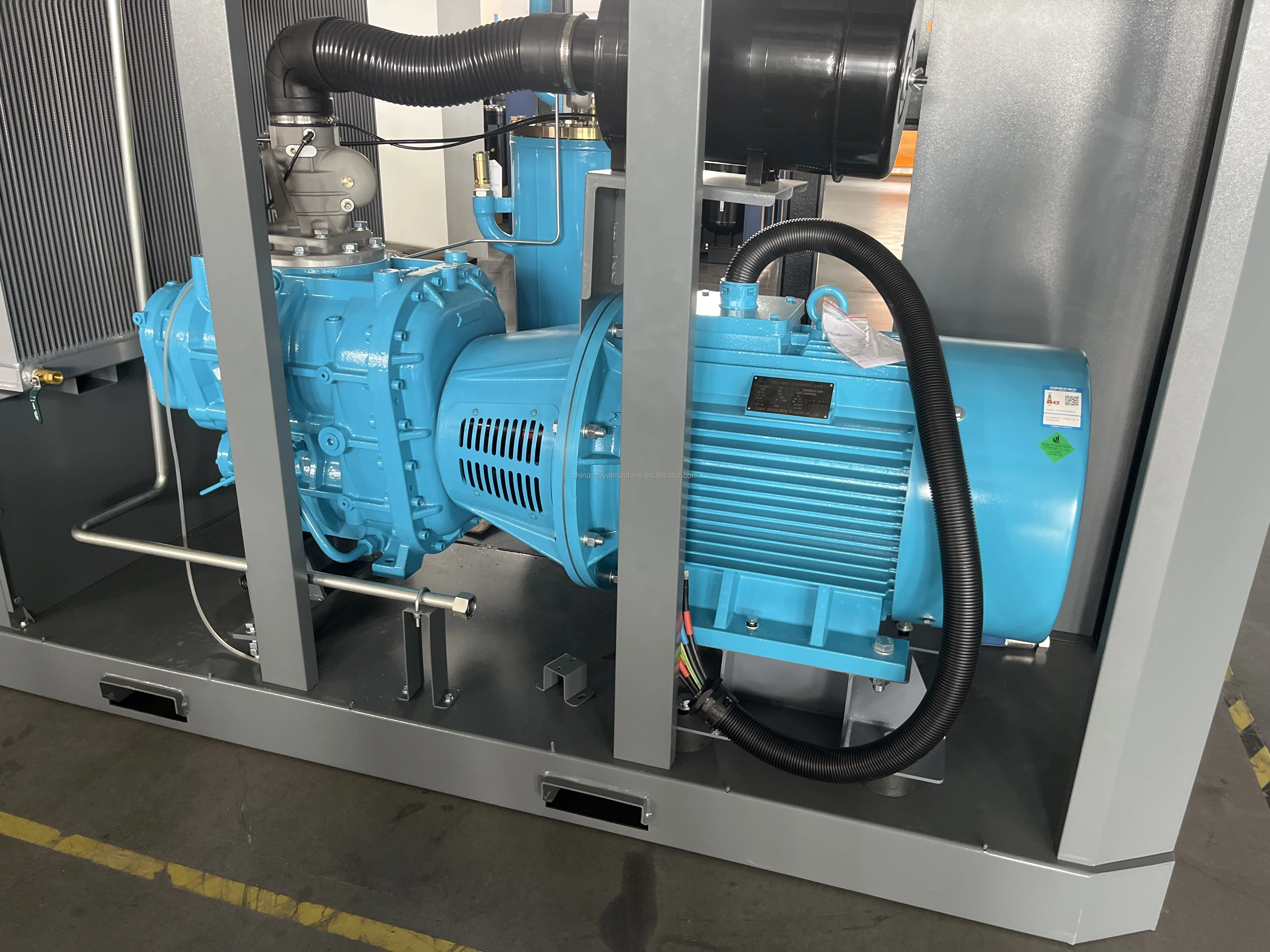

Two stage screw air compressor photos:

75kw 2-stage.jpg

Two-stage Fixed speed screw air compressor
MODEL	Air flow (m3/min)				Power(KW)	Noise (Db)	Discharge connection	Dimension ( mm)			Weight(KG)
MODEL	0.7Mpa	0.8Mpa	1.0Mpa	1.3Mpa	Power(KW)	Noise (Db)	Discharge connection	Length	Width	Height	Weight(KG)
RMC-V2T22	4.41	4.12	3.33	2.55	22	68	G1	1440	830	1265	830
RMC-V2T30	5.93	5.68	4.10	3.92	30	68	G11/2	1500	940	1415	880
RMC-V2T37	7.12	7.05	5.88	4.51	37	68	G11/2	1500	940	1415	930
RMC-V2T45	10.29	9.70	6.66	5.60	45	72	G2	2000	1120	1590	1510
RMC-V2T55	13.33	12.05	9.95	6.86	55	76	DN50	2900	1470	1625	1750
RMC-V2T75	15.68	15.19	12.54	10.00	75	76	DN50	2900	1470	1625	1970
RMC-V2T90	20.29	19.11	15.83	12.94	90	76	DN65	3400	1757	1860	2670
RMC-V2T110	24.30	23.52	19.80	14.91	110	76	DN65	3400	1757	1860	2950
RMC-V2T132	28.42	27.44	22.74	18.33	132	78	DN80	3750	1900	1980	4570
RMC-V2T160	33.32	31.85	27.44	22.64	160	78	DN80	3750	1900	1980	4750
RMC-V2T185	38.22	37.24	31.36	27.15	185	78	DN100	3900	2100	1980	5800
RMC-V2T200	42.34	41.16	37.34	31.26	200	78	DN100	3900	2100	1980	6100
RMC-V2T220	47.54	45.28	40.38	36.46	220	82	DN100	4260	2182	2170	6200
RMC-V2T250	51.45	49.98	44.88	39.20	250	82	DN100	4260	2182	2170	6500
RMC-V2T280	57.80	55.60	49.50	44.60	280	83	DN100	4260	2182	2170	6800
RMC-V2T280W	57.80	55.60	49.50	44.60	280	82	DN125	3800	2200	2250	8550
RMC-V2T315	63.10	61.30	55.20	49.70	315	85	DN125	4600	2240	2260	8600
RMC-V2T315W	63.10	61.30	55.20	49.70	315	82	DN125	3800	2200	2250	8850
RMC-V2T355	73.00	72.00	61.10	54.50	355	85	DN125	4600	2240	2260	9200
RMC-V2T355W	73.00	72.00	61.10	54.50	355	82	DN125	3800	2200	2250	8970
