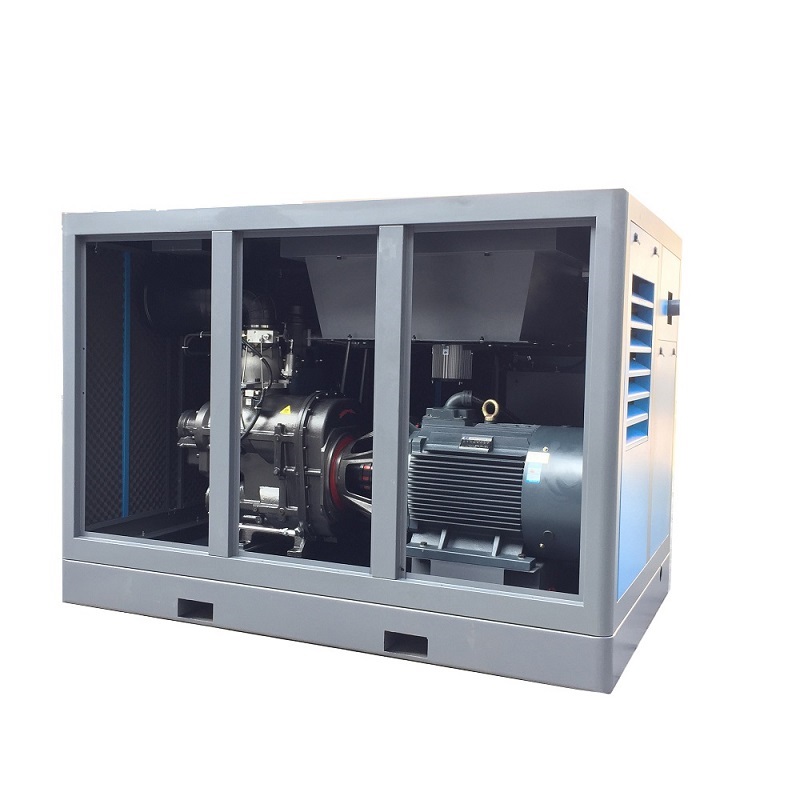

250kw fixed speed two stage screw compressor

Product Description:

How two-stage screw air compressors saving energy:

Sample compressor 250kw 2-stage:

∎Air capacity: 250kw single stage compressor 40m3/min @8bar; while 250kw two-stage compressor 50m3/min @8bar.

∎Power consumption: single stage compressor 250kw + 75kw can make 50m3/min @8bar, so that 250kw two-stage compressor can save power 75kw, and one compressor can work for many years,75kw will save quite a lot.

∎Electric motor and inverter, 250kw two-stage compressor, with permanent magnet motor, it's high frequency 150hz, it work quite good when compressor not work at full load, and normally compressors will not work at full load all the time, this way, permanent magnent motor will make no extra consumption as fixed speed motors.

Model No.	Air capacity	Outlet pressure	Power	Outlet connect	Dimension	Weight
	m3/min	Mpa	KW/HP		*LWH(mm)*	kg
DD-75A	12.5	0.8	55/75	DN50	1750*1250x1520	1700
	10.0	1.0
	8.8	1.3
DD-100A	15.5	0.8	75/100	DN50	2250x1330x1650	2200
	13.0	1.0
	11.5	1.3
DD-120A	20.0	0.8	90/120	DN65	2500*1600x1750	2600
	18.0	1.0
	15.0	1.3
DD-150A	24.0	0.8	110/150	DN65	2500x1600x1750	2700
	21.0	1.0
	18.5	1.3
DD-175A	28.2	0.8	132/175	DN80	3100x1850x1890	3600
	23.2	1.0
	22.0	1.3
DD-220A	33.0	0.8	160/220	DN80	3100x1850x1890	3806
	28.0	1.0
	23.5	1.3
DD-250A	38.5	0.8	185/250	DN80	3100x1850x1890	4000
	33.0	1.0
	28.0	1.3
DD-270A	41.0	0.8	200/270	DN100	3640*2200x2180	5200
	38.0	1.0
	32.0	1.3
DD-300A	45.0	0.8	220/300	DN100	3640 x 2200 x 2180	5400
	41.0	1.0
	34.5	1.3
DD-350A	51.5	0.8	250/350	DN100	3640 *2200x2180	5500
	45.0	1.0
	40.0	1.3
DD-375A	56.0	0.8	280/375	DN125	3640 x 2200 * 2180	5800
	50.0	1.0
	45.0	1.3
DD-420A	65.0	0.8	315/420	DN125	3640*2200x2180	6000
