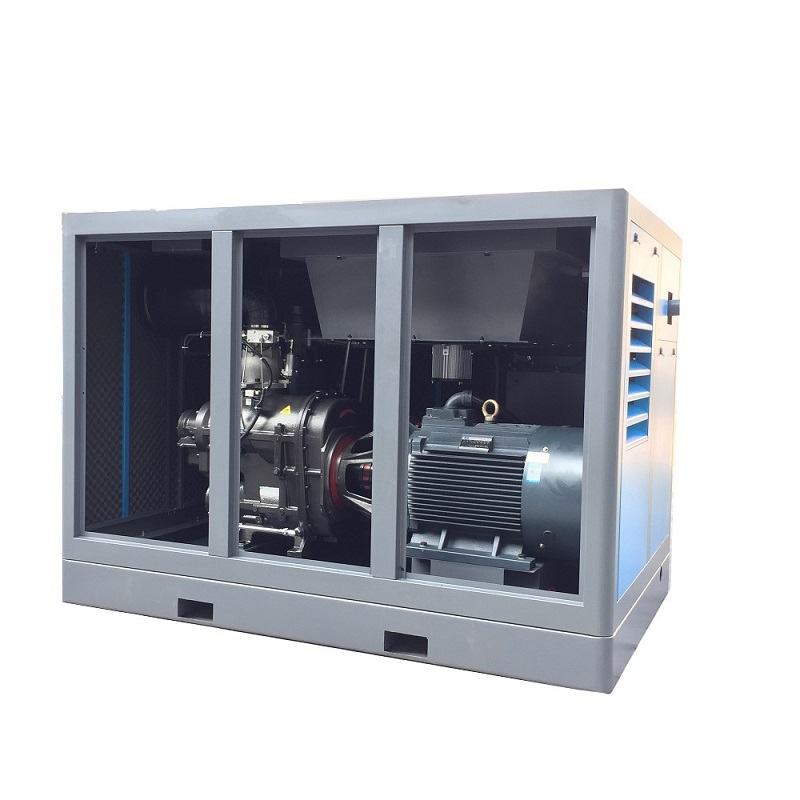

315kw fixed speed two stage screw compressor
Product Description:
| DD Series Two Stage Screw Air Compressors |
| ∎This latest generation of energy efficient air compressors |
| can SAVE 15 – 20% on your power bills.Our ground-breaking range |
| of DD Series ‘2 Stage’ rotary screw air compressors offer outstanding |
| energy savings when compared to conventional single-stage compressors. |
| ∎Our extensive range covers capacities from 15.8m³/min@6bar (55kW) up to |
| 65m³/min@8bar (315kW) and with pressures ranging up to 13 barg. |
| ∎This is by far the widest range of two-stage rotary screw air |
| compressors available! |
| Model No. | Air capacity | Outlet pressure | Power | Outlet connect | Dimension | Weight |
| m3/min | Mpa | KW/HP | L*W*H(mm) | kg | ||
| DD-75A | 12.5 | 0.8 | 55/75 | DN50 | 1750*1250x1520 | 1700 |
| 10.0 | 1.0 | |||||
| 8.8 | 1.3 | |||||
| DD-100A | 15.5 | 0.8 | 75/100 | DN50 | 2250x1330x1650 | 2200 |
| 13.0 | 1.0 | |||||
| 11.5 | 1.3 | |||||
| DD-120A | 20.0 | 0.8 | 90/120 | DN65 | 2500*1600x1750 | 2600 |
| 18.0 | 1.0 | |||||
| 15.0 | 1.3 | |||||
| DD-150A | 24.0 | 0.8 | 110/150 | DN65 | 2500x1600x1750 | 2700 |
| 21.0 | 1.0 | |||||
| 18.5 | 1.3 | |||||
| DD-175A | 28.2 | 0.8 | 132/175 | DN80 | 3100x1850x1890 | 3600 |
| 23.2 | 1.0 | |||||
| 22.0 | 1.3 | |||||
| DD-220A | 33.0 | 0.8 | 160/220 | DN80 | 3100x1850x1890 | 3806 |
| 28.0 | 1.0 | |||||
| 23.5 | 1.3 | |||||
| DD-250A | 38.5 | 0.8 | 185/250 | DN80 | 3100x1850x1890 | 4000 |
| 33.0 | 1.0 | |||||
| 28.0 | 1.3 | |||||
| DD-270A | 41.0 | 0.8 | 200/270 | DN100 | 3640*2200x2180 | 5200 |
| 38.0 | 1.0 | |||||
| 32.0 | 1.3 | |||||
| DD-300A | 45.0 | 0.8 | 220/300 | DN100 | 3640 x 2200 x 2180 | 5400 |
| 41.0 | 1.0 | |||||
| 34.5 | 1.3 | |||||
| DD-350A | 51.5 | 0.8 | 250/350 | DN100 | 3640 *2200x2180 | 5500 |
| 45.0 | 1.0 | |||||
| 40.0 | 1.3 | |||||
| DD-375A | 56.0 | 0.8 | 280/375 | DN125 | 3640 x 2200 * 2180 | 5800 |
| 50.0 | 1.0 | |||||
| 45.0 | 1.3 | |||||
| DD-420A | 65.0 | 0.8 | 315/420 | DN125 | 3640*2200x2180 | 6000 |
DD Series Two Stage Screw Air Compressors
∎This latest generation of energy efficient air compressors，can SAVE 15 – 20% on your power bills.Our ground-breaking range
of DD Series ‘2 Stage’ rotary screw air compressors offer outstanding，energy savings when compared to conventional single-stage compressors.
∎Our extensive range covers capacities from 15.8m³/min@6bar (55kW) up to 65m³/min@8bar (315kW) and with pressures ranging up to 13 barg.
∎This is by far the widest range of two-stage rotary screw air compressors available!
