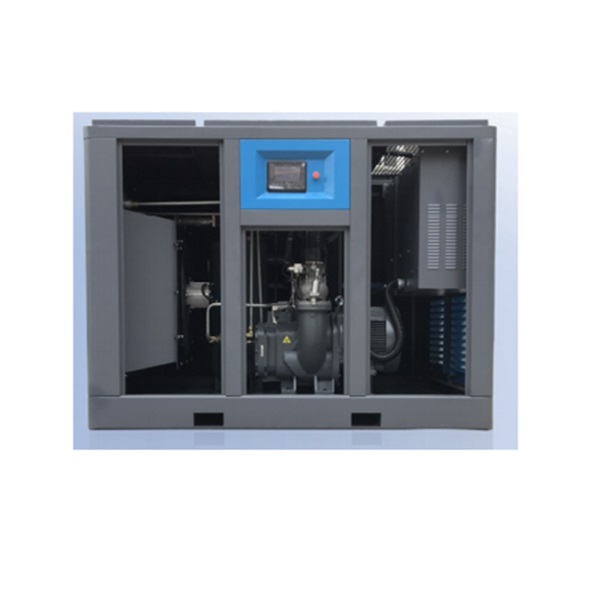

132kw two stage permanent magnet screw compressor

Product Description:

How two-stage screw air compressors saving energy:

Sample compressor 250kw 2-stage:

∎Air capacity: 250kw single stage compressor 40m3/min @8bar; while 250kw two-stage compressor 50m3/min @8bar.

∎Power consumption: single stage compressor 250kw + 75kw can make 50m3/min @8bar, so that 250kw two-stage compressor can save power 75kw, and one compressor can work for many years,75kw will save quite a lot.

∎Electric motor and inverter, 250kw two-stage compressor, with permanent magnet motor, it's high frequency 150hz, it work quite good when compressor not work at full load, and normally compressors will not work at full load all the time, this way, permanent magnent motor will make no extra consumption as fixed speed motors.

Model No.	Air Capacity(m3/min)				Power	Outlet Pipe	Outlet Diemention(mm)			Weight
Model No.	0.6Mpa	0.7Mpa	0.8Mpa	1.0Mpa	kw	Size	L	W	H	Kg
DDM-30A	4.8	4.6	4.5	3.8	22	G11/4"	1484	1126	1578	840
DDM-40A	7.4	6.63	6.5	4.5	30	G11/4"	1630	1214	1660	1050
DDM-50A	8	7.65	7.5	6.0	37	G11/4"	1630	1214	1660	1050
DDM-60A	11.2	10.5	10.3	7.3	45	G2"	1834	1290	1810	1353
DDM-75A	15.8	13.6	12.3	9.5	55	G2"	2300	1300	1830	1534
DDM-100A	16.5	16	15.5	12.8	75	G2"	2300	1300	1830	1700
DDM-125A	21	20.7	19.5	15	90	DN65	2400	1630	1980	2080
DDM-150A	25.5	24.8	24	19.3	110	DN65	2400	1630	1980	2120
DDM-175A	30	29	28	23	132	DN80	2800	1828	2150	4850
DDM-220A	35	34	33.5	27.5	160	DN80	2800	1828	2150	5000
DDM-250A	40	39	38	32.5	185	DN100	3000	1900	1930	5900
DDM-270A	44	43	42.5	37	200	DN100	3000	1900	1930	6200
DDM-300A	52.3	51.5	47	42	220	DN125	3860	2130	2380	8500
DDM-350A	55.3	54	51	45.5	250	DN125	3860	2130	2380	8650
