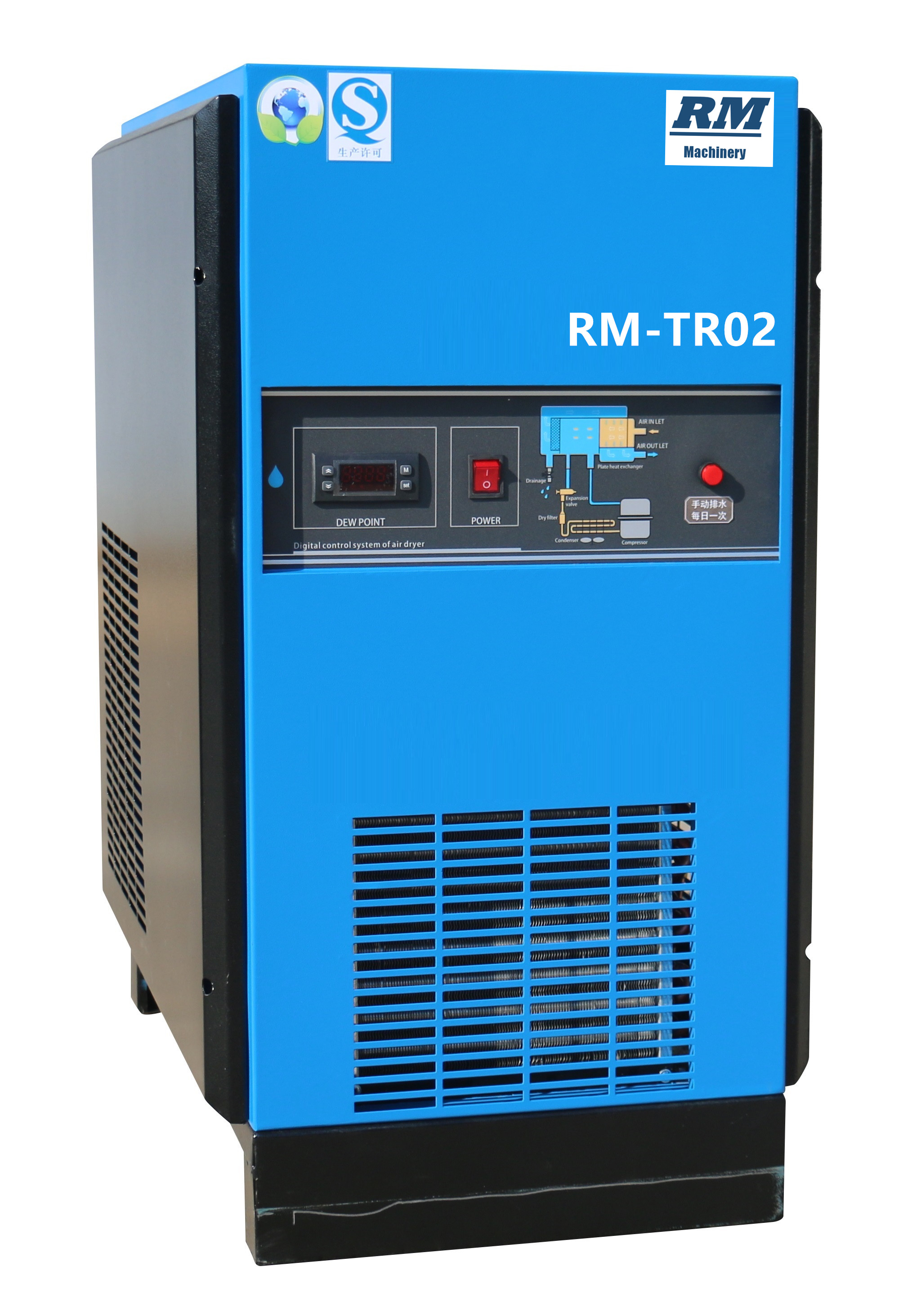

2.6m3 Normal temperature air dryer

Product Description:

Normal Air-cooling Refrigerated Air Dryer

Working Elements

Refrigerated air dryer is drying through cooling.It cools the compressed air from upstream to certain dew point temperature,condensates most of liquid water with dust and oil,and then drains out of the machine through gas/liquid separator so as to get the dried finished air.

Work Condition and Technical Data:

Inlet temperature : ≤45℃

Cooling method: Air-cooled

Designed dew point: 2~10℃

Refrigerant: R134/R410

Inlet pressure: 0.6~1.6MPa

Pressure drop: ≤0.02MPa

Model No.	Capacity		Voltage(V/Hz)	Compressor power(HP)	Fan power(W)	Air connection	Net weight（kg）	Dimensions（mm）
Model No.	Nm³/min	scfm	Voltage(V/Hz)	Compressor power(HP)	Fan power(W)	Air connection	Net weight（kg）	length	width	height
RMD-1F	1.5	53	220V/50HZ	1	90	ZG1"	60	630	450	670
RMD-2F	2.6	92		1	120	ZG1"	80	700	450	915
RMD-3F	4	140		1.25	150	ZG1½"	105	850	500	970
RMD-5F	5.2	182		2	195		135	850	500	970
RMD-6F	7	245		2			190	900	560	1070
RMD-8F	8.5	300		2.5			195	900	560	1070
RMD-10F	11	388		3	150X2	ZG2"	225	1180	670	1160
RMD-13F	13.8	487		3.6	150X2		260	1180	670	1160
RMD-15F	16	560	380V/50HZ	4	180X2		305	1180	670	1160
RMD-20F	20	700		5	195X2	DN80	400	1360	710	1205
RMD-25F	25	875		6	195X2		520	1650	970	1422
RMD-30F	35	1225		7.5	240X2		630	1650	970	1422
RMD-40F	45	1575		10	195X3	DN100	750	1810	1090	1697
