22kw Oil-free screw air compressor
22kw Oil-free screw air compressor
Product Description:

100% oil free water injection screw air compressor for medicine production and package use

From the production of tablets to the application of preservatives, during filling and dosing. Compressed air is usually in direct contact with the product or package. Zero-grade oil-free air prevents oil from being transferred directly to the product. For process-grade aseptic air requirements, zero-grade oil-free air is essential. Royal machinery Zero-grade 100% technology Reduced product safety issues.

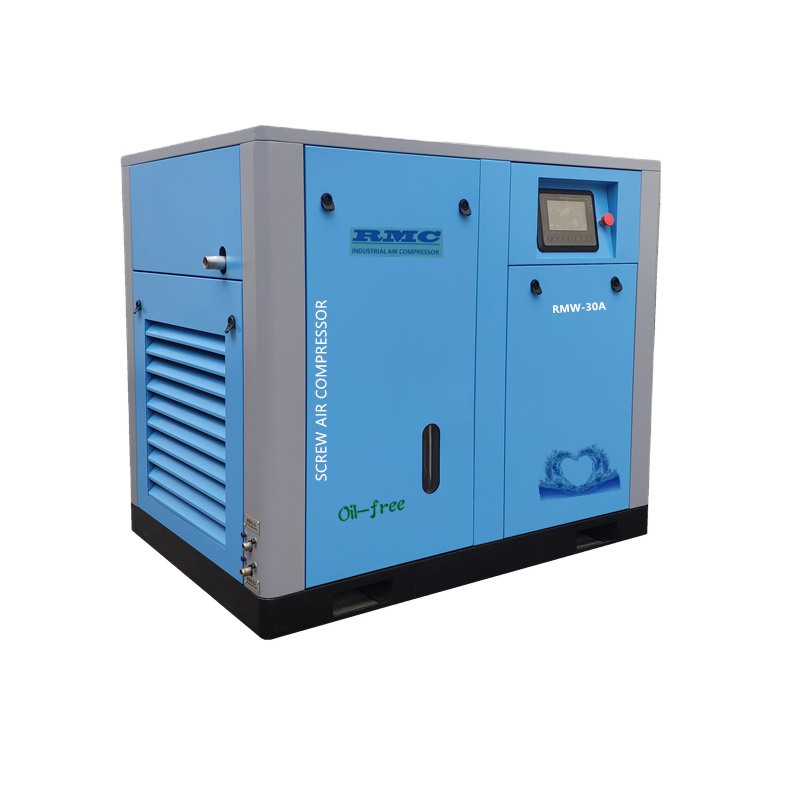

 8bar direct drive oil free screw air compressor

  • Model No.: RMW-30A

  • Air capacity:  3.5m3/min @ 8bar;  3.13m3/min @ 10bar.

  • Power:   22kw/30hp

  • Lubricant water volume: 27 Liters/min

  • Way of cooling:  Water cooling

  • Air outlet connect: G1"

  • Weight: 870kg

  • Dimension: 1950x1050x1430mm

  • Inlet temperature: atmospheric pressure 2-40℃

  • Outlet temperature: Cooling water temp.+14℃

  • Voltage: 380v/415v/220v-3p-50hz/60hz are available

  • Inverter and permanent magnet motor are available also

explosion view

Product Description

 TIM20190427233449

High reliability of oil free screw air compressor

  • Oil free screw compressor applies rotary single screw air-end.

  • By being in market every since 1982, it has undergone practical for over 30 years, all of it’s air quality, power saving and high reliability features have turned out to be state of the art in design and performance.

  • Air and water are becoming a major trend in compressor market due to their high compatibility, availability, reliability and environment friendliness.




High efficiency (lubricated water)

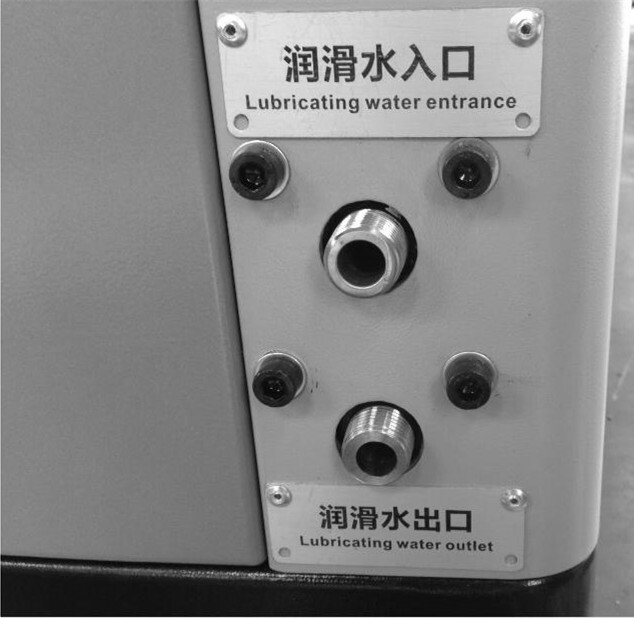

  • Lubricant water functions

  • Serves as sealant, coolant and lubricant.

  • Sealing function reduces/seals “blow hole” between rotors and housing to absolute minimum, ensuring efficient compression with delivered air volume per horse power increased by 15% as compared to general dry-type screw units.

  • Lubricant water also very effectively absorbs and dissipates heat generated during compression process.

28b8416c156195de_





Near isothermal compression(oil free water lubricant screw air compressor):

  • Thermal energy and water film, arising from the compressed air cooled by the lubricant water that has being injected into the compression chamber, seals up rotor gaps to prevent air back flow. The ideal isothermal compression thus achieves optimum efficiency. Theoretically, when air at 20℃ is compressed to 7kg/cm2G in a thermal isolation process, the discharge air temperature will be over 250℃, injection of lubrication water that has a cooling effect, into the compression chamber will bring the temperature down to about 40℃, achieving high efficiency ideal isothermal compression.

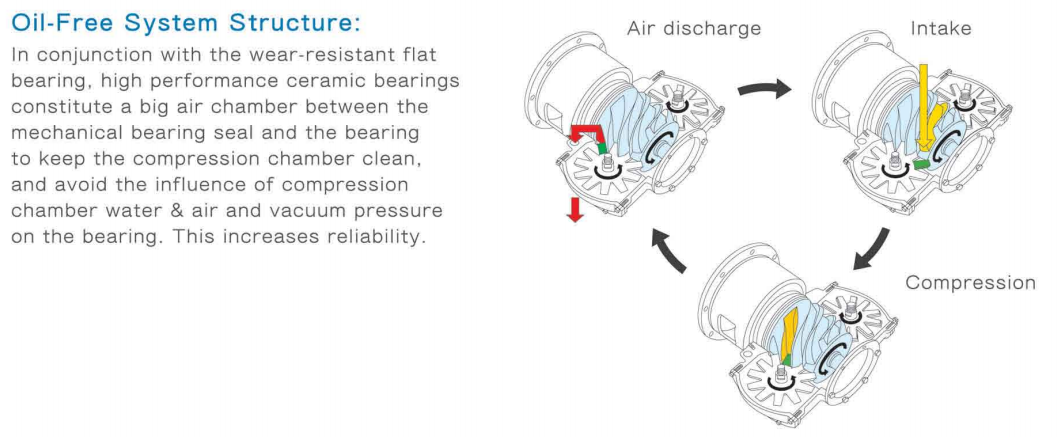

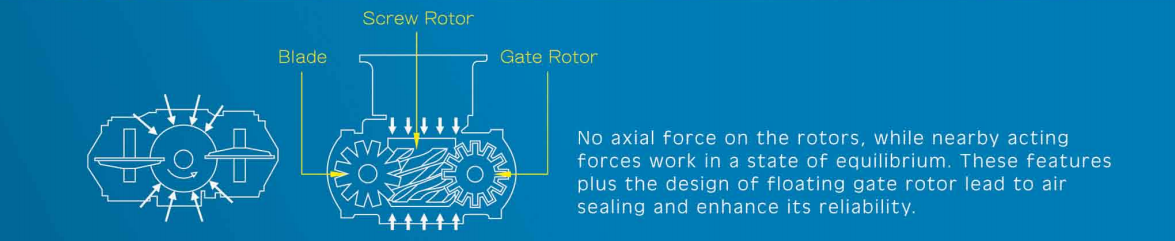

structure

Oil free water lubricant screw air compressor--Technical parameters

ModelWay of TransmissionAir flow /PressurePower

Lubricated water

volume

Cooling water volumeWay of CoolingSpeedOutlet sizeWeightDiemention (mm)
m3/min/barKWHPL/minL/minrpmKgLWH
RMW-10ACoupling1.16/81.04/107.51027
Air2930G1''50013008001300
RMW-15ACoupling1.56/81.36/10111527
Air2930G1''54013008001300
RMW-20ACoupling2.4/82.12/10152027
Air2930G1''65016009101350
RMW-25ACoupling3.1/82.62/1018.52527
Air2940G1''84016009101350
RMW-30ACoupling3.5/83.13/10223027
Air2940G1''870195010501432
RMW-40ACoupling5.0/84.2/10304040
Air2940G1 1/2"980195010501432
RMW-50ACoupling6.1/85.22/10375040
Air2940G1 1/2"1000215013001590
RMW-60ACoupling7.3/86.13/10456040
Air2960G2''1060215013001590
RMW-75ACoupling9.6/88.6/105575100150Water2960G2''1250215013001590
RMW-100ACoupling12.5/811.42/1075100100200Water2960G2''1480215013001590
RMW-125ACoupling16.3/814.52/1090125180250Water2970DN802030255014001605
RMW-150ACoupling19.4/816.9/10110150200270Water2970DN802450255014001605
RMW-175ACoupling22.21/820.38/10132175240320Water2970DN802850255014001605
RMW-215ACoupling25.0/824.0/10160215280360Water2970DN1003500280018502000
RMW-250ACoupling28.0/825.0/10185250280360Water2970DN1004000280018502000
RMW-270ACoupling33.0/827.0/10200270320400Water2970DN1004500280018502000
RMW-340ACoupling41.0/838.0/10250340320400Water2970DN1005000280018502000

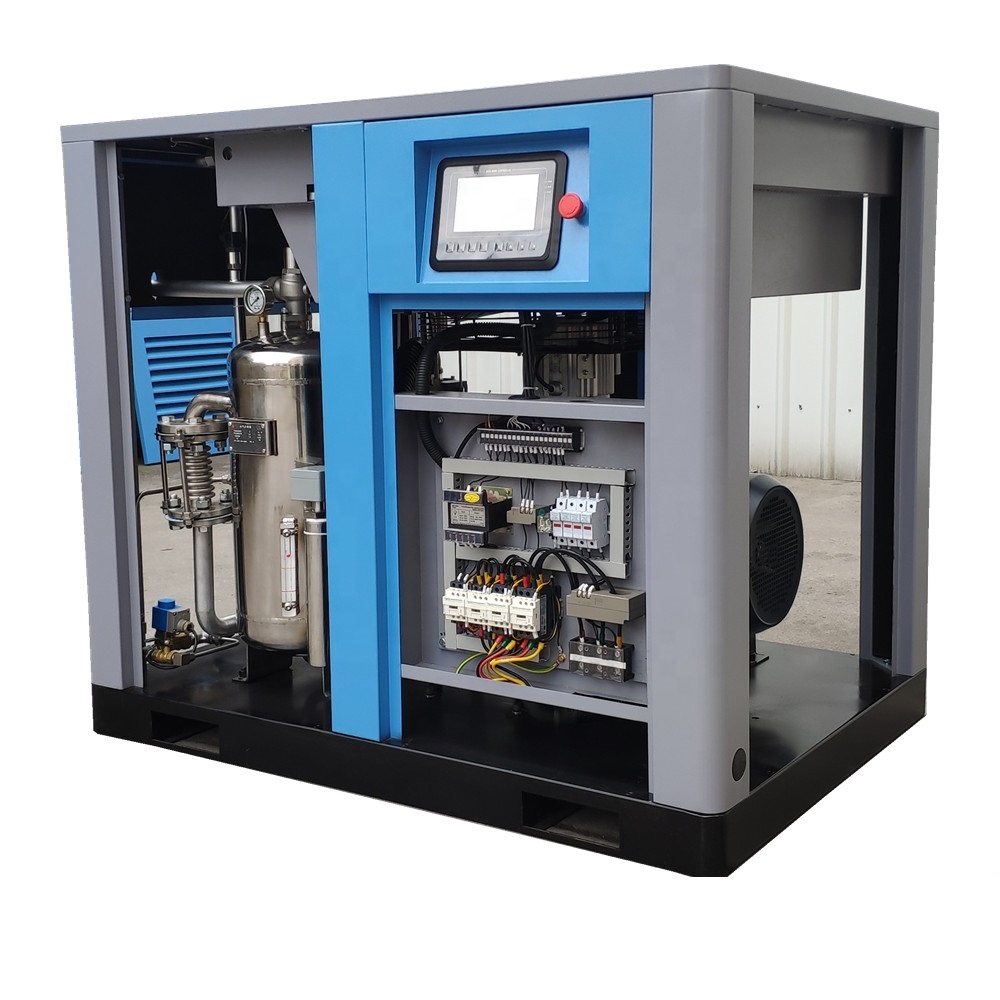

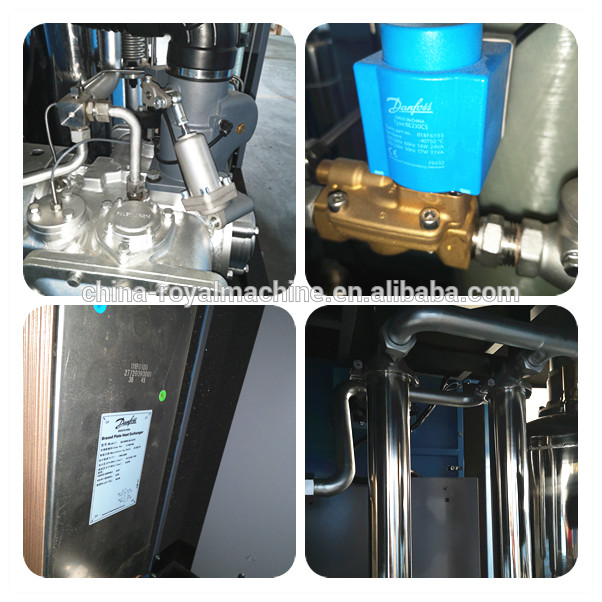

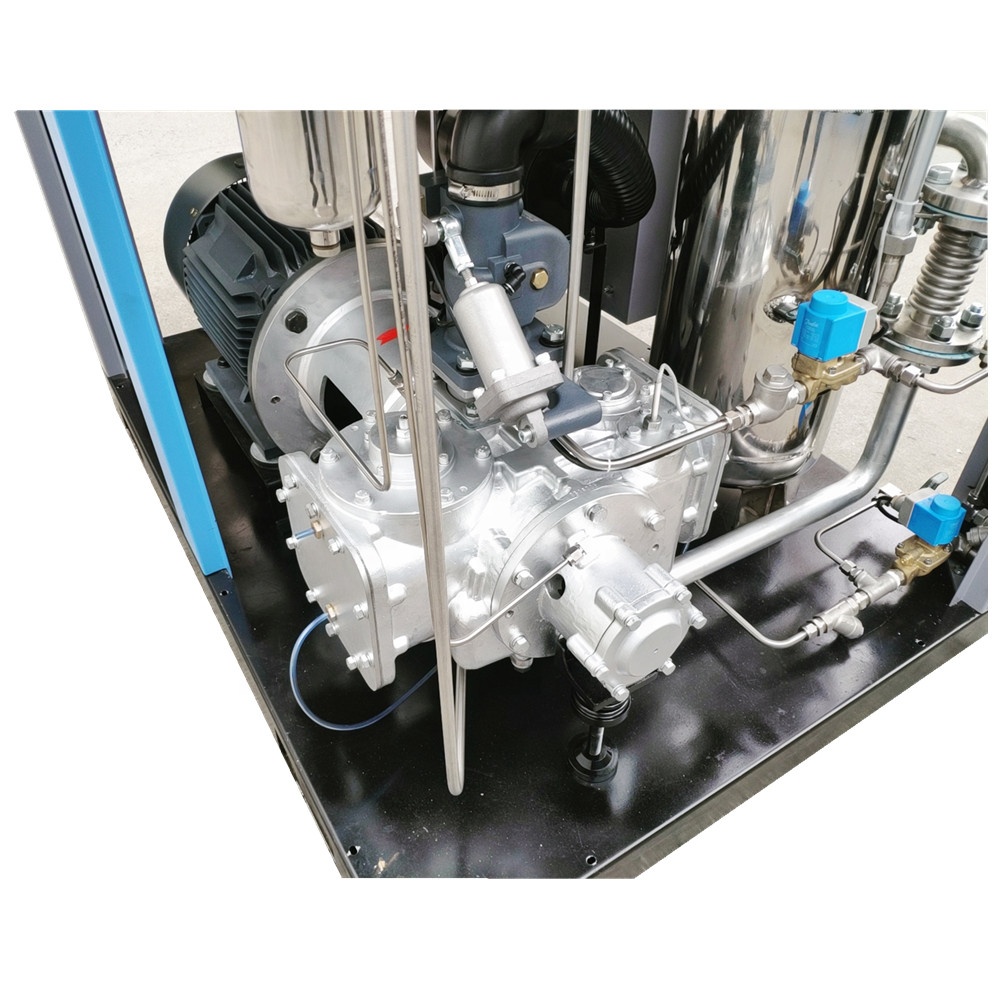

Photos: Oil free water lubricant screw air compressor

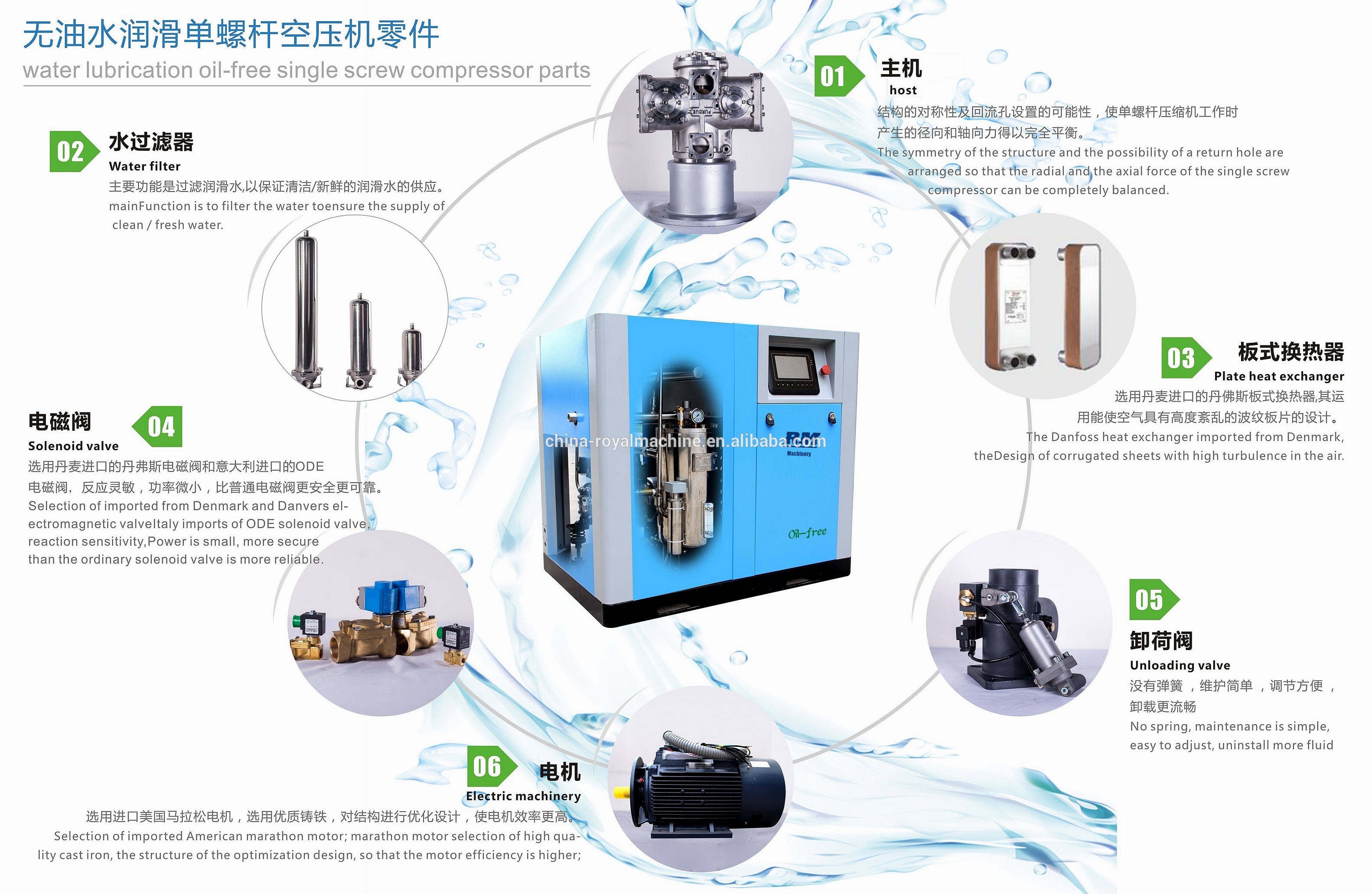

spare parts



We designed and manufacture oil free screw air end by own factory:

air end

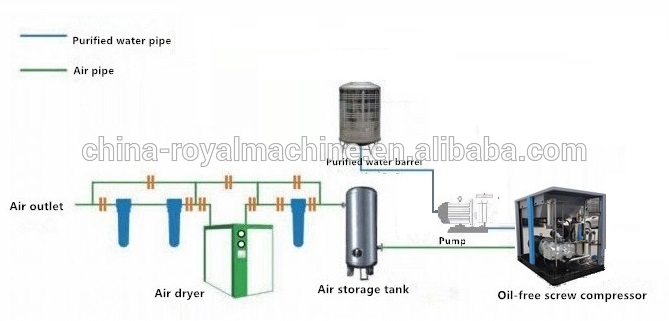

Air cooling oil free screw air compressor flow chart:

Air cooling

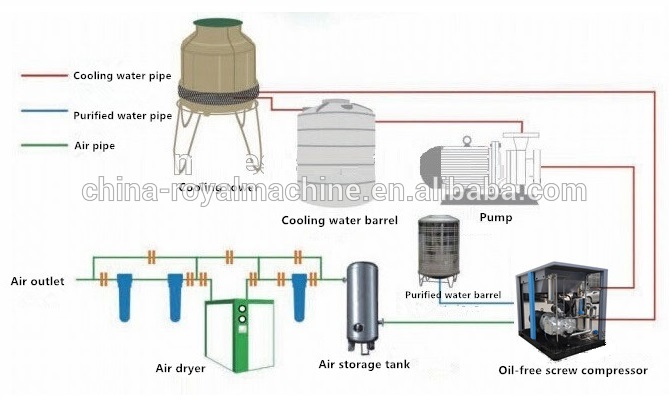

Water cooling oil free screw air compressor flow chart:

water cooling



Application--oil free water lubricant screw air compressor:

  1.  Food industry

  2. Fermentation

  3. Cleaning

  4. PET, Transport

  5. Medical industry etc.

Our Services

 Long interval maintenance periods:

Nearly ideal isothermal compression, direct driven method, smart configuration and precision component design and machining, long bearing service life, all of the above essentially extends interval between regular periodical maintenance.

Company Information



Shanghai Royal Machinery Co.,Ltd is a high-tech enterprise which specialized in sales and service of compressed air system equipment, and after-treatment equipment, booster compressor, diesel generator and drying equipment, etc.



We have an experienced team. It not only provide high-quality and high-efficiency compressors for users but also provide the best solution for air system equipment during before-sale, selling and after-sale.



Welcome to contact us for inquires and quotation.

Packaging & Shipping

 All of our screw air compressors are packed by export standard plywood case:




Because of screw air compressor package volume and weight,  most of our screw air compressors are shipped by sea.
