we do air compressors export for 9 years
we received good quality feedback from all our air compressor customers
all of our air compressors are passed CE certificate test.
we accept OEM ODM orders, can make model numbers and logo on our air compressors.
there is guarantee card with each of our air compressor
220 volt 50hz single phase/three phase/gasoline engine breathing air compressor for scuba diving and fire fighting
Filling time of this air compressor to different pressure air tanks:
| Tank filling time @ pressure | |||
| 1L | 3L | 7L | 12L |
| 1.8min@180bar | 5.4min@180bar | 12.2min@180bar | 20min@180bar |
| 2.2min@225bar | 6.7min@225bar | 15.3min@225bar | 25.2min@225bar |
| 3.0min@300bar | 9.0min@300bar | 20.4min@300bar | |

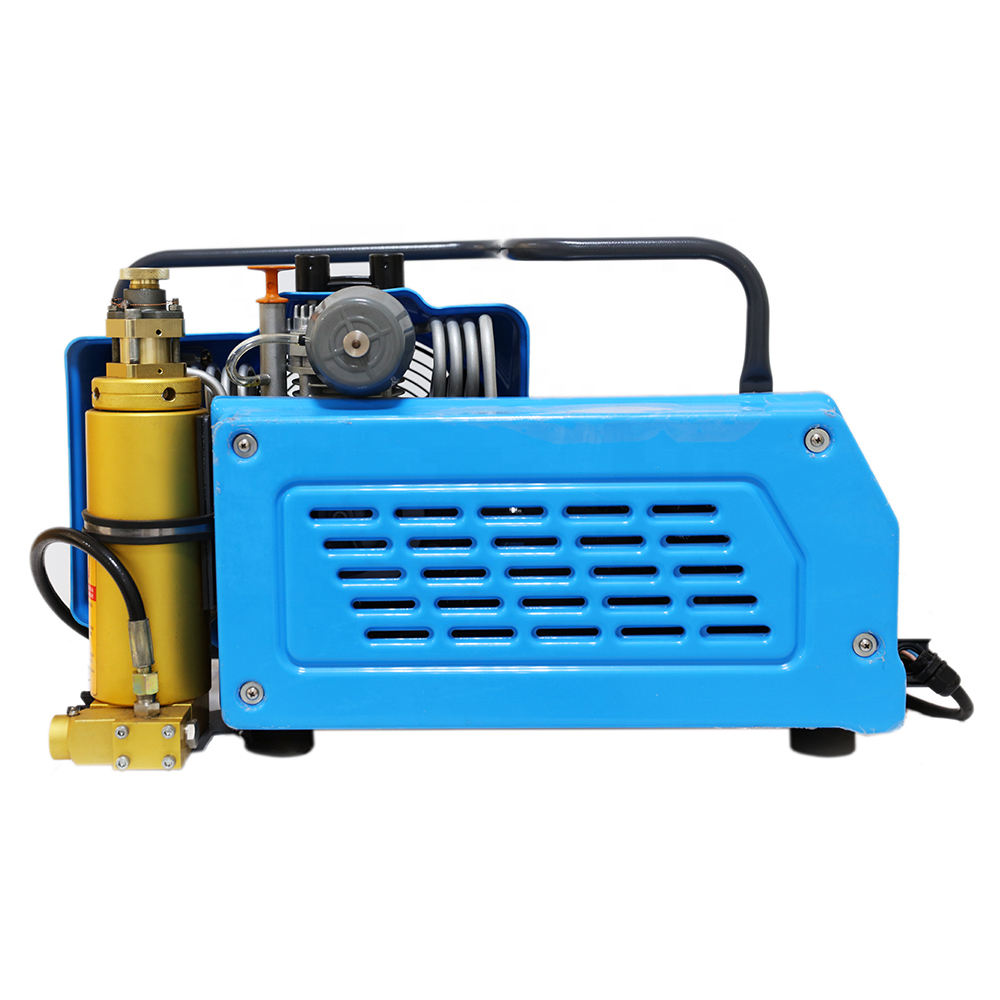

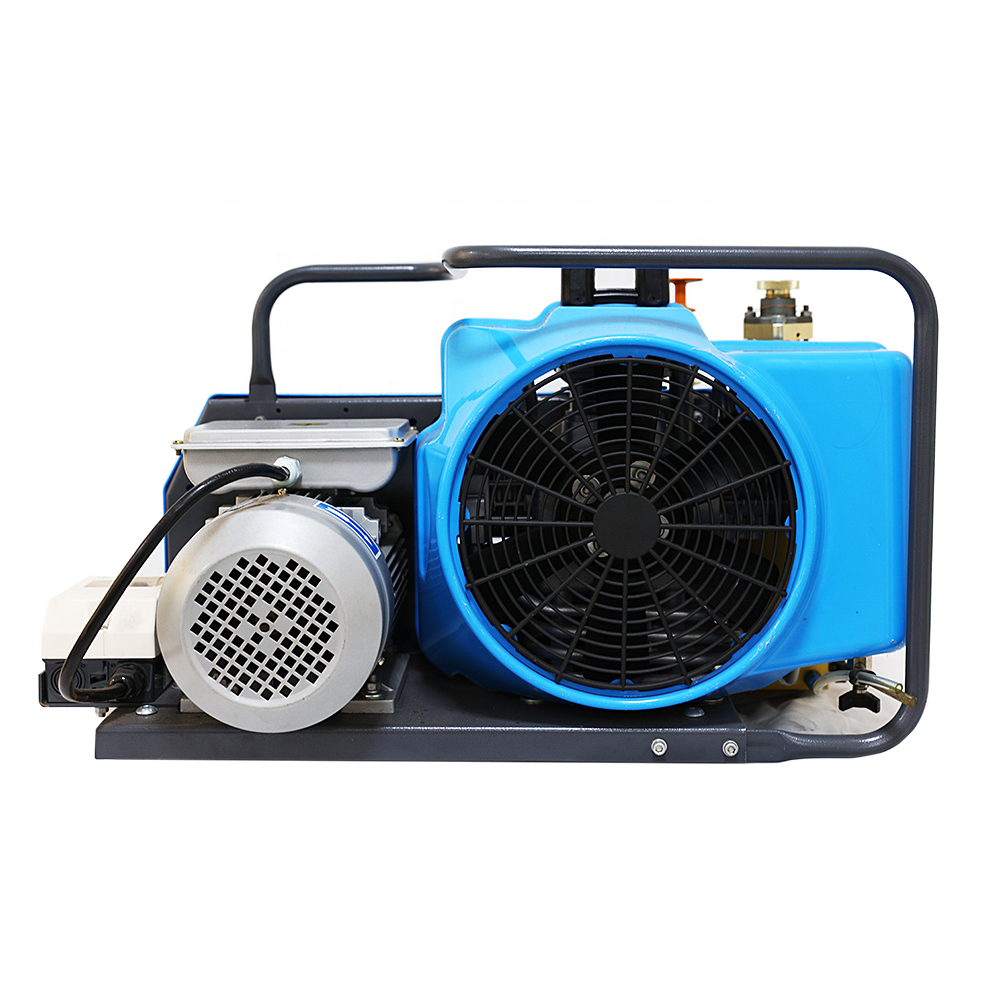

High pressure compressor for scuba / paintball /fire breathe junior
| Model No. | LW100 | LW100ET | LW100P |
| Medium | Breathable air | ||
| Air quality | Comply with EN12021 STANDARD | ||
| Discharge rate | 100L/min (6m3/h) | ||
| Work pressure | 225bar/330bar | ||
| Noise | 95dB | 97dB | |
| Weight | 46kg | 44kg | |
| Drive | Single phase | Three phase | Gasoline engine |
| Power | 2.2kw | 2.2kw | 4.2k2 |
| Compressor Parameters | |||
| Stage | 3 | ||
| 1st-stage cylinder | 60mm | ||
| 2nd-stage cylinder | 28mm | ||
| 3rd-stage cylinder | 12mm | ||
| Travel | 24mm | ||
| Speed | 2300rpm | ||
| 1st-stage exhaust pressure | 0.6-0.7Mpa | ||
| 1st-stage safety valve pressure | 1.0Mpa | ||
| 2nd-stage exhaust pressure | 4-6Mpa | ||
| 2nd-stage safety valve pressure | 8Mpa | ||
| Lubricating system | splash lubrication | ||
| Oil volume | 360ml | ||
| Max. intake temperature | 5-45℃ | ||
| Intake temperature | Environment temperature+20℃ | ||
| Motor protection grade | IP55 | ||
| Length(mm) | 700 | 770 | |
| Width(mm) | 380 | 420 | |
| Height(mm) | 420 | 420 | |
100L/min, 3.5cfm
225BAR for diving
330BAR for fire protection
3-stage
Power: 2.2kw/3.0hp
Voltage: 220v/50hz 60hz; 380v/50hz,60hz
Imported seals, brand belt and starter, NSK bearing with first class electric motor
Each air filter valve with 1 gauge

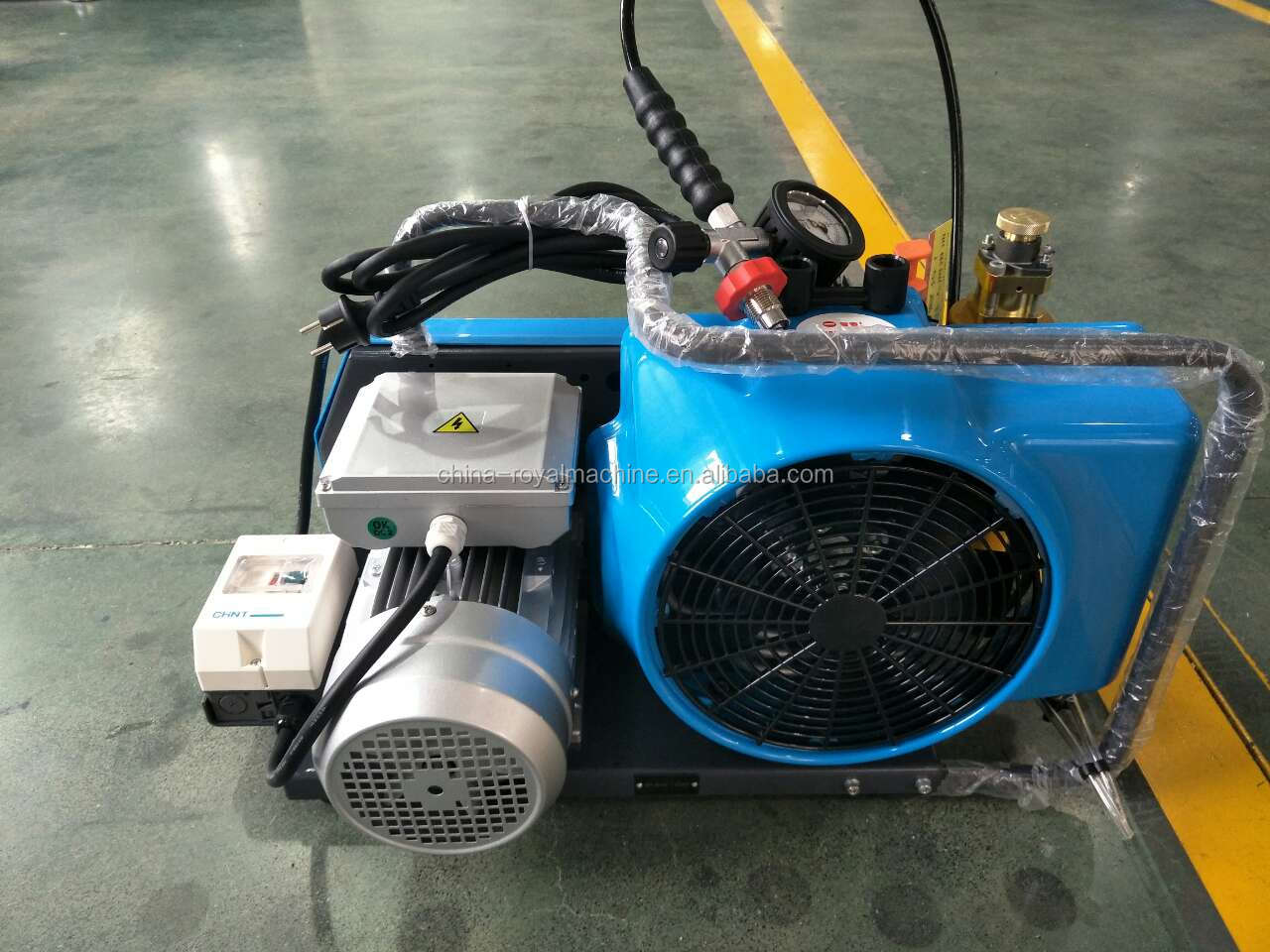

Package photos:

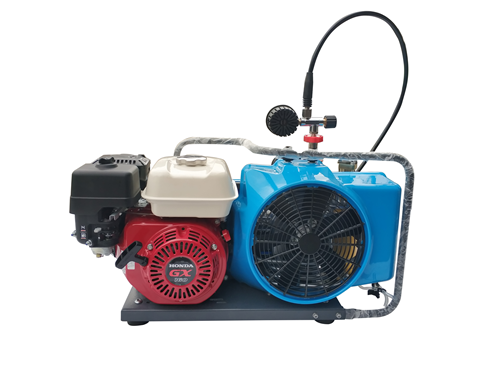

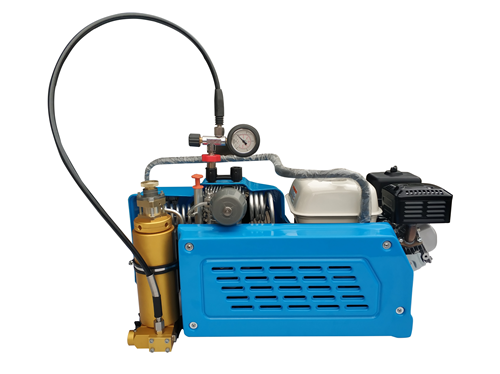

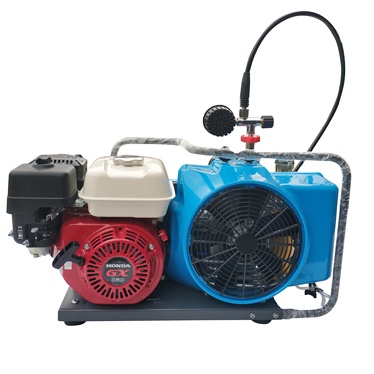

Gasoline engine driven photos
Applications: Widely used in the fields of fire fighting, diving, sports, national defense, aerospace, petroleum and petrochemical, medicine, naval vessels, marine engineering, air tightness detection, electric power, gas, precision instruments, etc.
Air tightness test air compressor applications: Mainly used for gas tightness inspection, gas tightness inspection, pressure test, strength inspection, air tightness inspection and other fields of various high pressure vessels or pressure vessels such as gas cylinders, steel cylinders, valves, pipelines, pressure instruments, high pressure boilers, etc.
