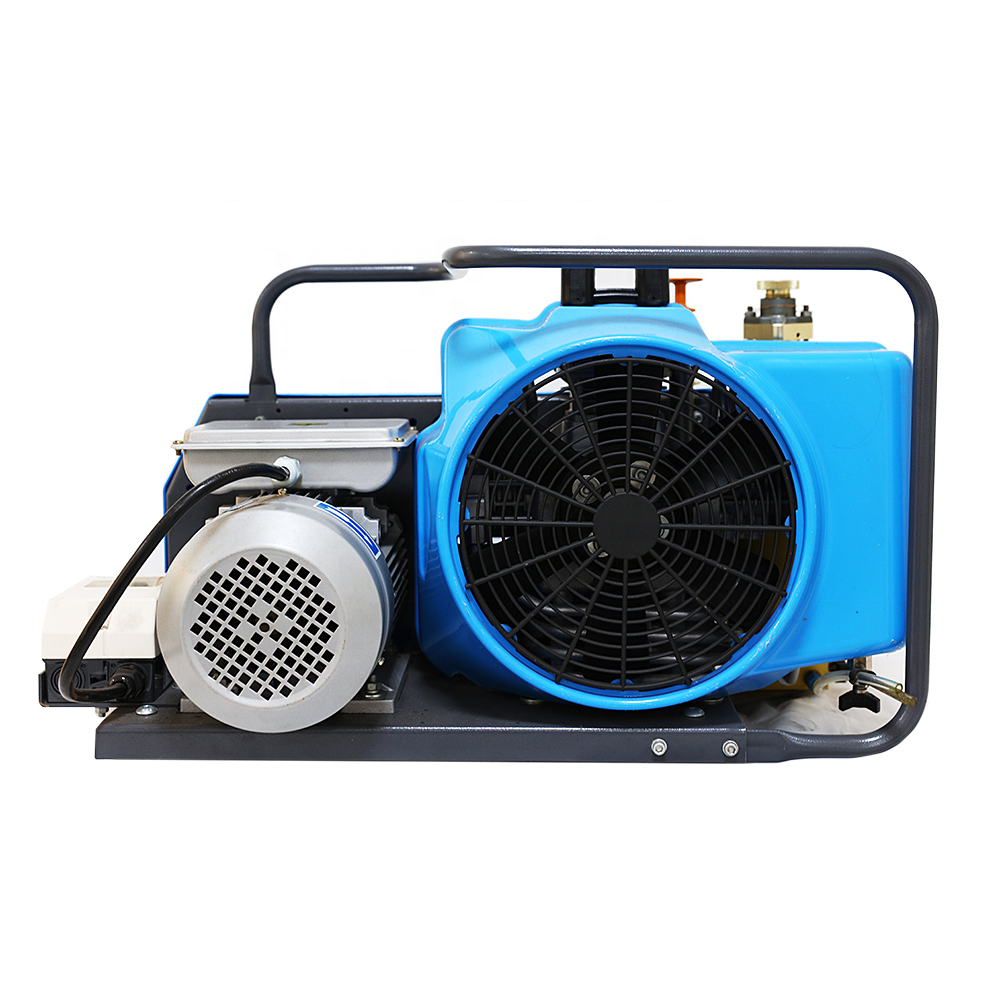

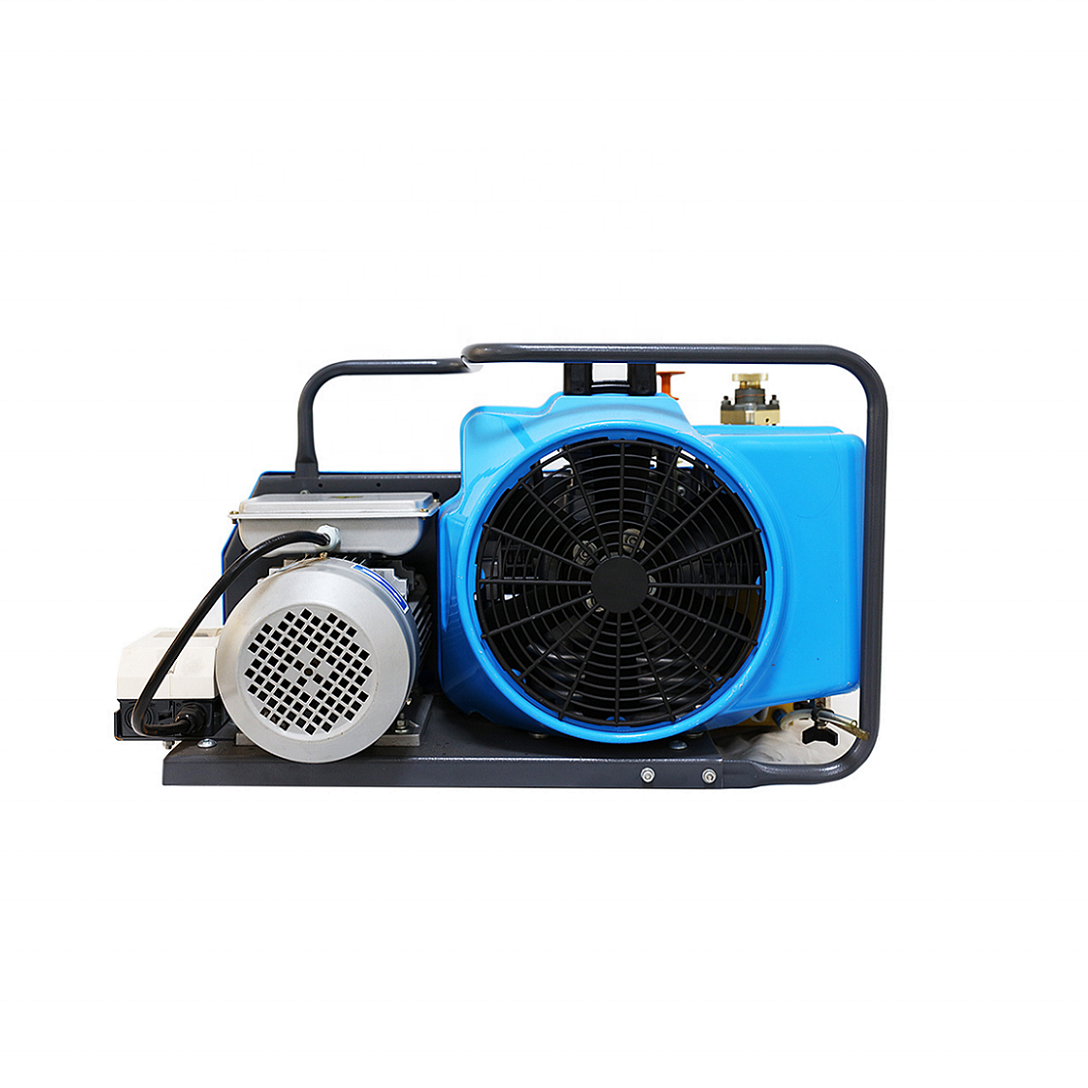

3.5cfm 6m3/h 300bar high pressure air compressor for valves inspection and air tightness testing
3.5cfm 6m3/h 300bar high pressure air compressor for valves inspection and air tightness testing
Product Description:

  • we do air compressors export for 9 years

  • we received good quality feedback from all our air compressor customers

  • all of our air compressors are passed CE certificate test.

  • we accept OEM ODM orders, can make model numbers and logo on our air compressors.

  • there is guarantee card with each of our air compressor

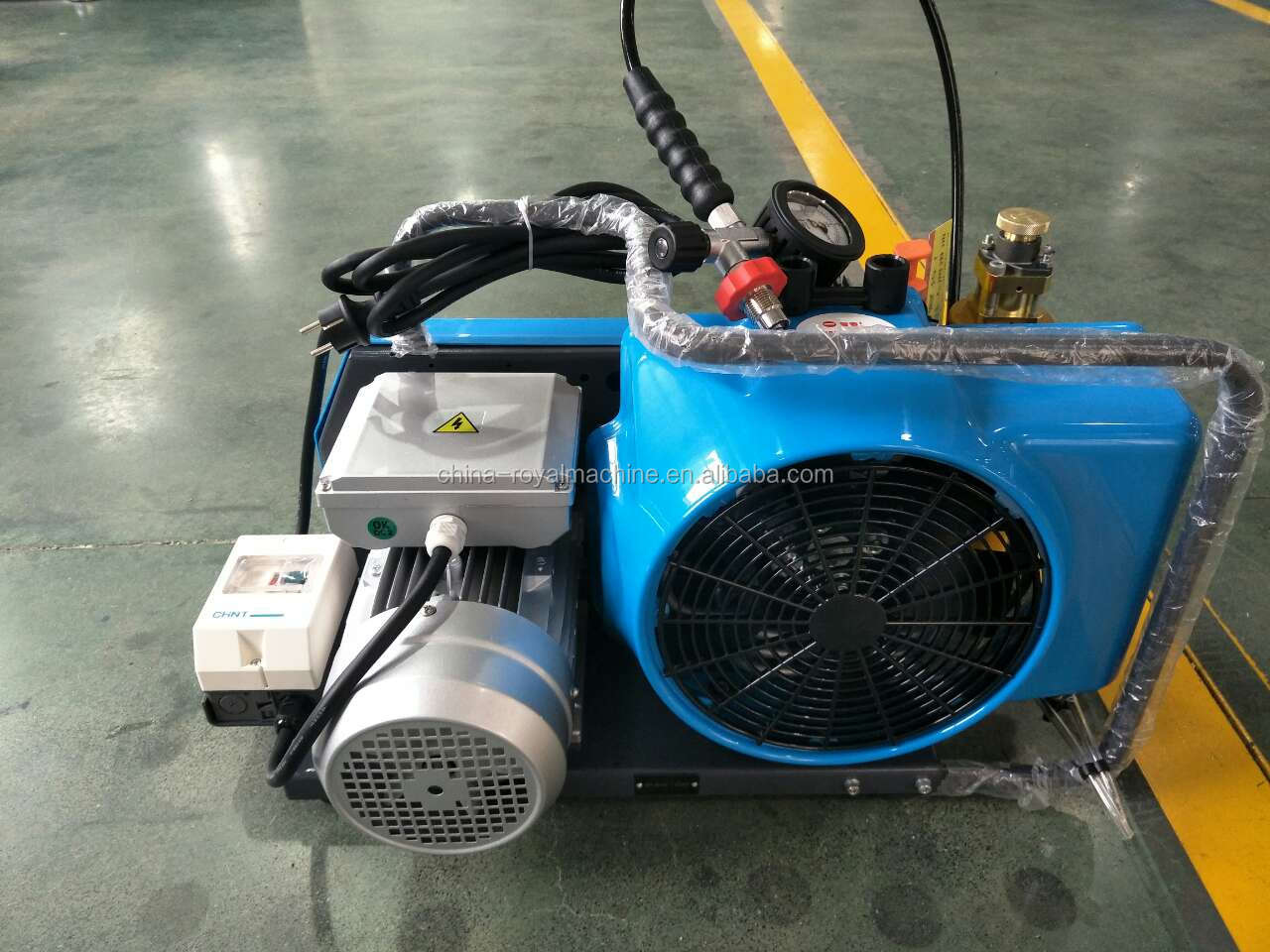

220 volt 50hz single phase/three phase/gasoline engine breathing air compressor for scuba diving and fire fighting

113112







































Filling time of this air compressor to different pressure air tanks:

Tank filling time @ pressure
1L3L7L12L
1.8min@180bar5.4min@180bar12.2min@180bar20min@180bar
2.2min@225bar6.7min@225bar15.3min@225bar25.2min@225bar
3.0min@300bar9.0min@300bar20.4min@300bar



High pressure compressor for scuba / paintball /fire breathe junior

Model No.LW100LW100ETLW100P
MediumBreathable air
Air qualityComply with EN12021 STANDARD
Discharge rate100L/min (6m3/h)
Work pressure225bar/330bar
Noise95dB97dB
Weight46kg44kg
DriveSingle phaseThree phaseGasoline engine
Power2.2kw2.2kw4.2k2
Compressor Parameters
Stage3
1st-stage cylinder60mm
2nd-stage cylinder28mm
3rd-stage cylinder12mm
Travel24mm
Speed2300rpm
1st-stage exhaust pressure0.6-0.7Mpa
1st-stage safety valve pressure1.0Mpa
2nd-stage exhaust pressure4-6Mpa
2nd-stage safety valve pressure8Mpa
Lubricating systemsplash lubrication
Oil volume360ml
Max. intake temperature5-45℃
Intake temperatureEnvironment temperature+20℃
Motor protection gradeIP55
Length(mm)700770
Width(mm)380420
Height(mm)420420





  • 100L/min, 3.5cfm

  • 225BAR for diving

  • 330BAR for fire protection

  • 3-stage

  • Power: 2.2kw/3.0hp

  • Voltage: 220v/50hz 60hz; 380v/50hz,60hz

  • Imported seals, brand belt and starter, NSK bearing with first class electric motor

  • Each air filter valve with 1 gauge

Package photos:

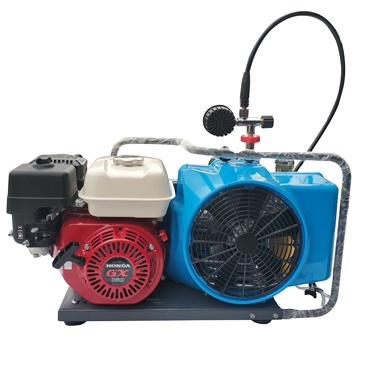

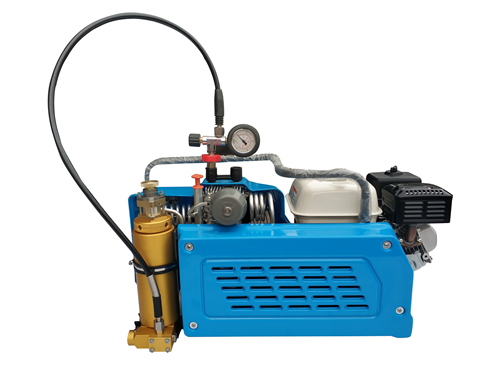

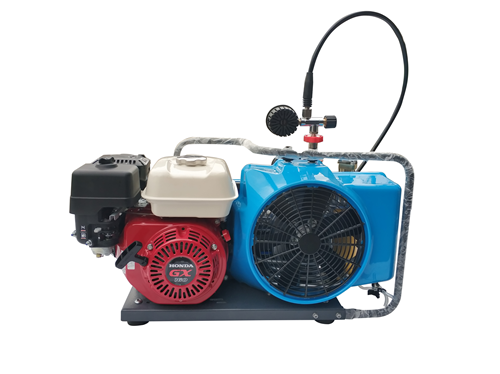

Gasoline engine driven photos



15_14_

Applications: Widely used in the fields of fire fighting, diving, sports, national defense, aerospace, petroleum and petrochemical, medicine, naval vessels, marine engineering, air tightness detection, electric power, gas, precision instruments, etc.

Air tightness test air compressor applications: Mainly used for gas tightness inspection, gas tightness inspection, pressure test, strength inspection, air tightness inspection and other fields of various high pressure vessels or pressure vessels such as gas cylinders, steel cylinders, valves, pipelines, pressure instruments, high pressure boilers, etc.



#aircompressor

#highpressureaircompressor

#scubadivingaircompressor

#firefightingaircompressor

#300baraircompressor

#scubaaircompressor

#divingaircompressor

#paintballaircompressor

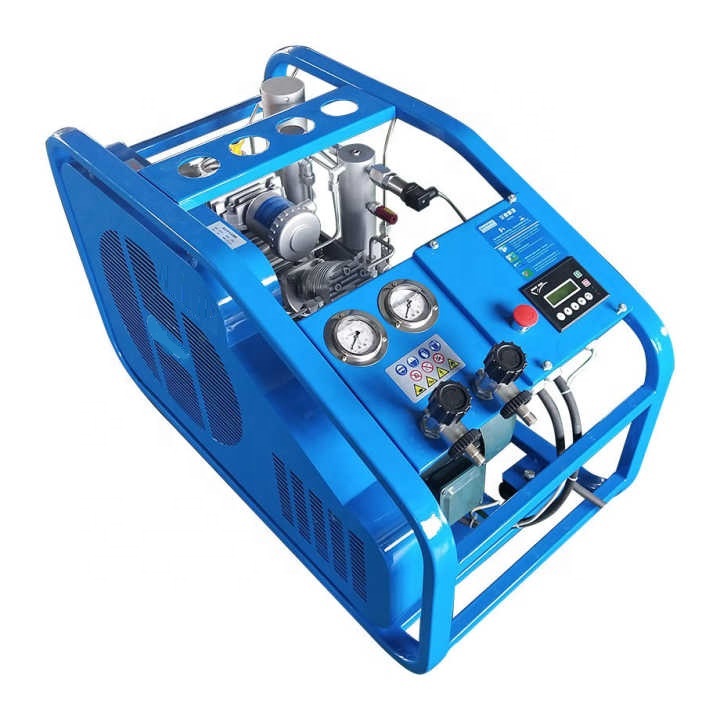

Related high pressure breathe air compressors:
