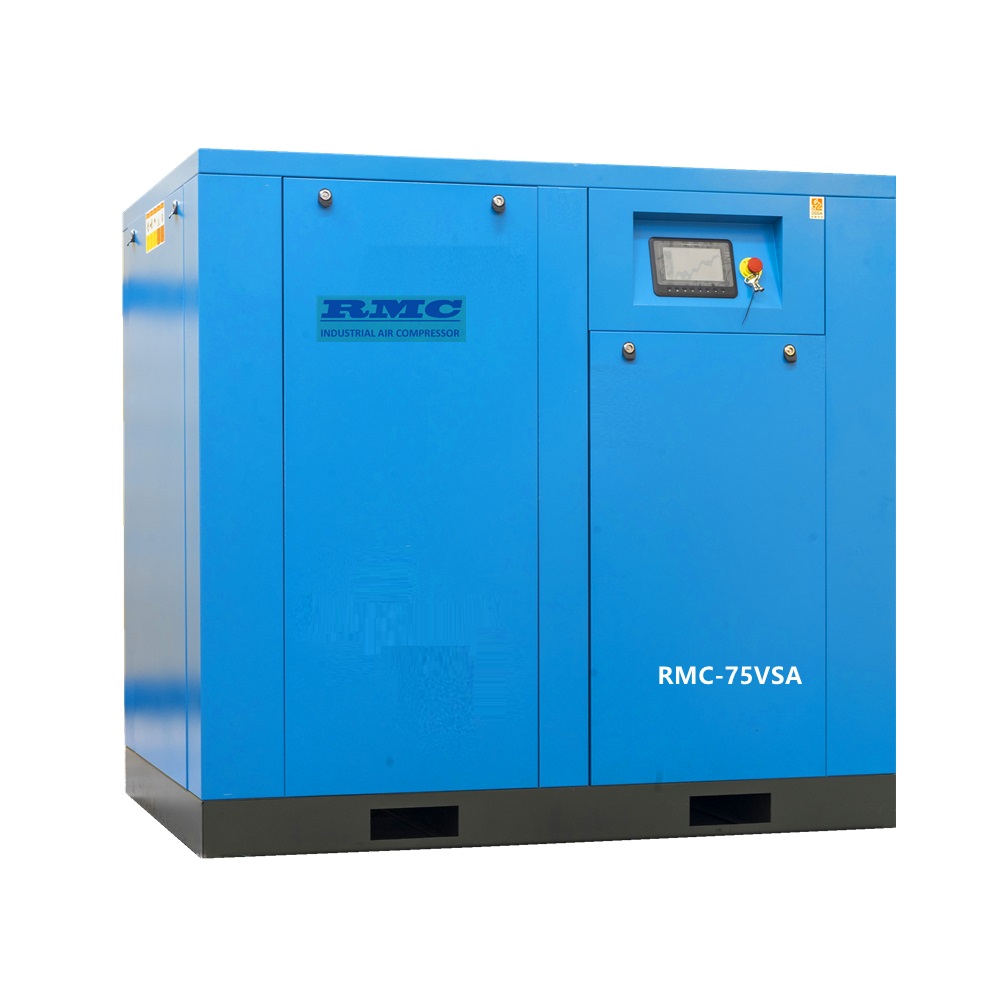

75kw direct driven screw air compressor
75kw direct driven screw air compressor
Product Description:

MD(direct driven) series screw air compressor


--High efficient and reliable direct driven system

--The rotor and motor direct drive through the flexible coupling, no transmission loss of energy consumption, higher transmision efficiency, higher reliability, bigger gas production, and more energy-efficient(22kw-250kw type)

--Rotor, sliding gears and motor through the flexible coupling connect, the coupling transmission is more efficiency thankk the belt transmission, also get more compressed air for the same energy consumption(280kw-400kw type)

--Automatic absorption of peak torque, avoid wallop, reduce wearing parts, increasse reliability, and reduce maintenannce costs.


Technical parameters of direct driven screw air compressors:


/0.7Mpa0.8Mpa1.0Mpa1.3MpaPowerOutlet
Model No.m3/minm3/minm3/minm3/minKWHPDia.
MD-10A1.31.21.00.847.510G3/4''
MD-15A1.71.61.41.21115G3/4''
MD-20A2.42.32.01.61520G3/4''
MD-30A3.63.43.22.82230G1''
MD-50A6.56.25.64.93750G1'' 1/2''
MD-75A10.19.58.57.55575G2''
MD-100A13.612.812.310.275100G2''
MD-125A16.115.514.012.590125DN50
MD-150A21.219.617.815.5110150DN65
MD-175A24.123.220.517.8132175DN65
MD-220A28.827.825.022.4160220DN80
MD-250A32.531.228.025.8185250DN80
MD-270A34.534.030.528200270DN80
MD-300W36.834.731.529.5220300DN100
MD-350W43.041.538.034.9250350DN100
MD-375W51.3550.5946.0641.51280375DN125
MD-400W56.7955.9550.0845.62315400DN125
MD-450W66.0865.4355.1249.58355450DN125
MD-500W75.0574.3164.4658.07400500DN125

Motor Power:18~400(Kw)

Air Delivery:2.3~68.5(m3/min)

Working Pressure:7.5~13.0(Bar)

Cooling Method: Air / Water

OEM is acceptable
